Quick Genius GP2 2000FF Windlass - Automatic Free-Fall System - 800W, 12V, 8MM or 5/16" Gypsy
This item is currently on backorder. You can still place an order, but it will only ship once it’s back in stock.

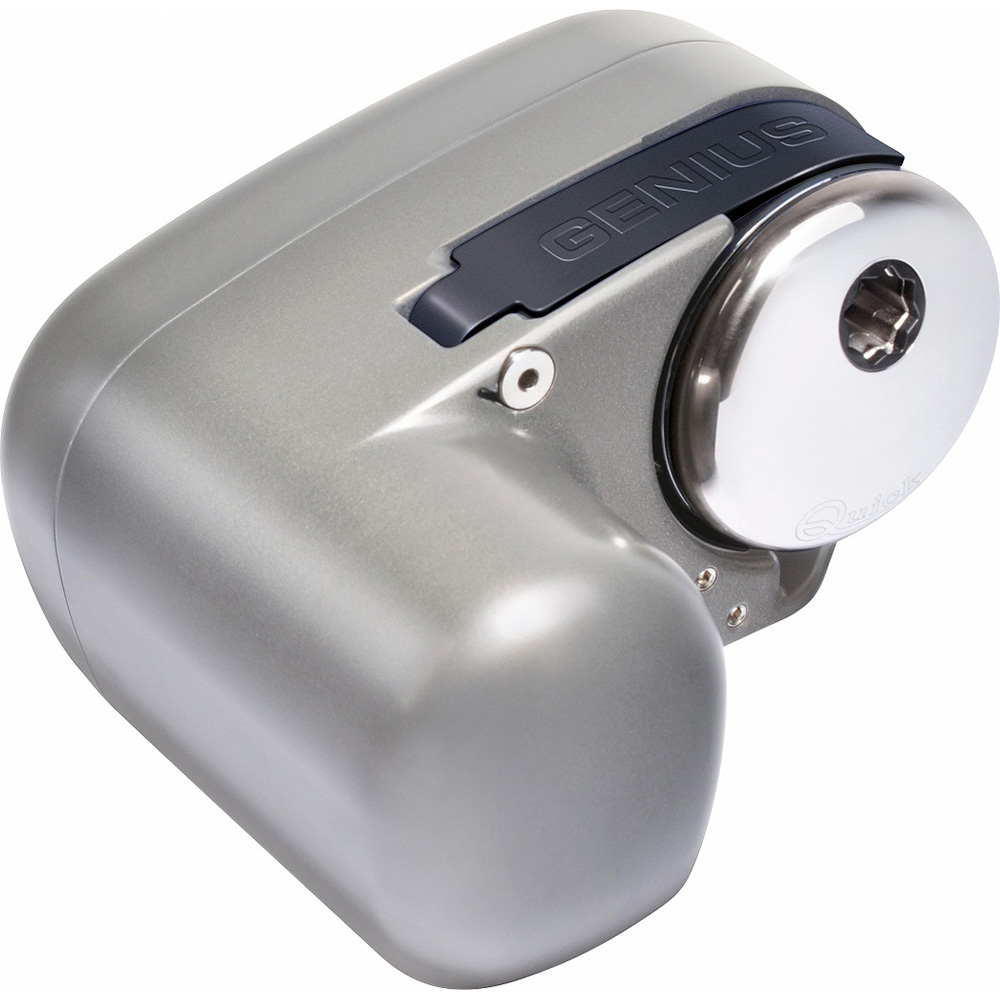

Genius GP2 2000FF Windlass - Automatic Free-Fall System - 800W, 12V, 8MM or 5/16" Gypsy
The Free-Fall technology applied to the Genius windlass allows free running of chain through the gypsy when lowering the anchor; simply by depressing the down control button, the windlass will release its clutch and the gypsy will freewheel. To stop the free-fall, depress the up control button on the windlass; the clutch will engage, stopping the gypsy and allowing retrieval of the chain.
The unit is sold complete with the windlass, solenoid unit, clutch handle, and mounting hardware.
Features:
- Horizontal on-deck windlasses
- Includes T6415-12 Solenoid
- For boats 26-43FT
- 8MM or 5/16" Gypsy
- Requires 5/8" three-stranded polyester rope
- Anodized aluminium in hard oxide base
- Rope and chain on a single gypsy
- Integrated sensor and magnet for chain counter
- Supplied with pressure lever
- IP66 watertight motor
- Epicyclic gearbox (GP2 1500-2000)
Specifications:
- Motor power - 800 W
- Motor supply voltage - 12 V
- Maximum pull - 900 Kg / 1984 lb
- Maximum working load - 350 Kg / 772 lb
- Working load - 120 kg/265 lb
- Current absorption @ working load - 96 A
- Maximum chain speed - 29,6 m/min / 97.1 ft/min
- Maximum chain speed @ working load - 20 m/min 65.6 ft/min
- Weight - 10,9 Kg / 24 lb
Accessories
- SKU 73077 — MFG# FTT641512000B00
