Aleph AL3 1012 Windlass - 12V, 1000W, 8MM, or 5/16" Gypsy to 5/8" Rope

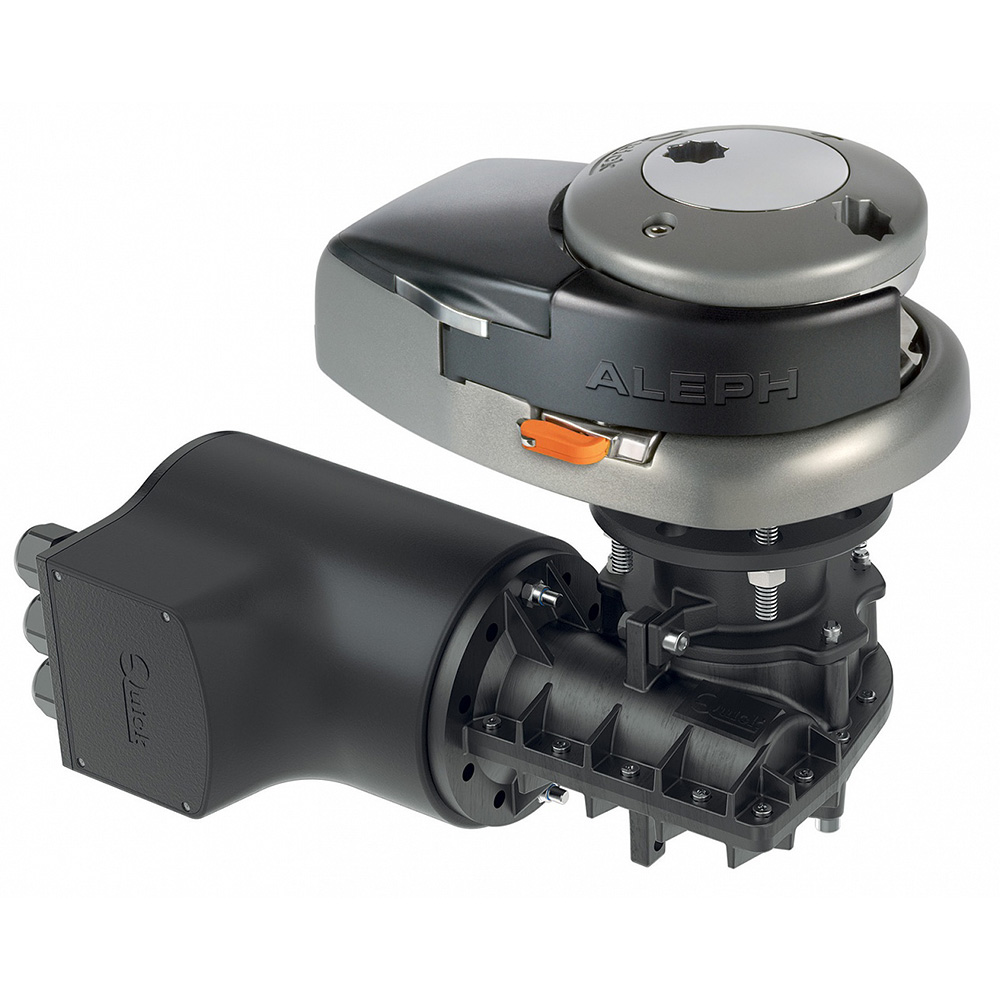

The AL3 vertical windlass features a hard-anodized aluminum construction, an IP67 watertight motor, an inspection lid, and an emergency manual lift system, making it suitable for boats with limited deck space. The unit includes a gearbox, solenoid, clutch handle, and mounting hardware.
Features:
- For 33-46FT Boats
- Vertical windlasses
- 8mm or 5/16 gypsy
- Requires 5/8" three-strand polyester rope
- Includes T6315-12 Solenoid
- Base in anodized aluminium with hard oxide
- With and without drum
- Rope and chain on a single gypsy
- Integrated sensor and magnet for chain counter
- Manual Free-Fall system
- Emergency manual lift system
- Supplied with pressure lever
- Inspection lid
- IP67 watertight motor
- Technopolymer gearbox (700W / 1000W)
Specifications:
- Motor power - 700 W
- Motor supply voltage - 12 V
- Maximum pull - 1000 Kg / 2204 lb
- Maximum working load - 370 kg/816 lb
- Working load - 120 kg/264 lb
- Current absorption @ working load - 140 A
- Maximum chain speed - 39,6 m/min 129.2 ft/min
- Maximum chain speed @ working load - 20,4 m/min 66.9 ft/min
- Weight - 18,6 Kg / 41 lb
Accessories
- SKU 56227 — MFG# FTT631512000B00
