Quick Genius GP2 2000 Windlass - 800W, 12V, 8MM or 5/16" Gypsy
Back Order
Toronto, ON
Vancouver, BC
NJ, Warehouse
FL, Warehouse
On Back Order
This item is currently on backorder. You can still place an order, but it will only ship once it’s back in stock.
$2,090.59
Back to: Quick

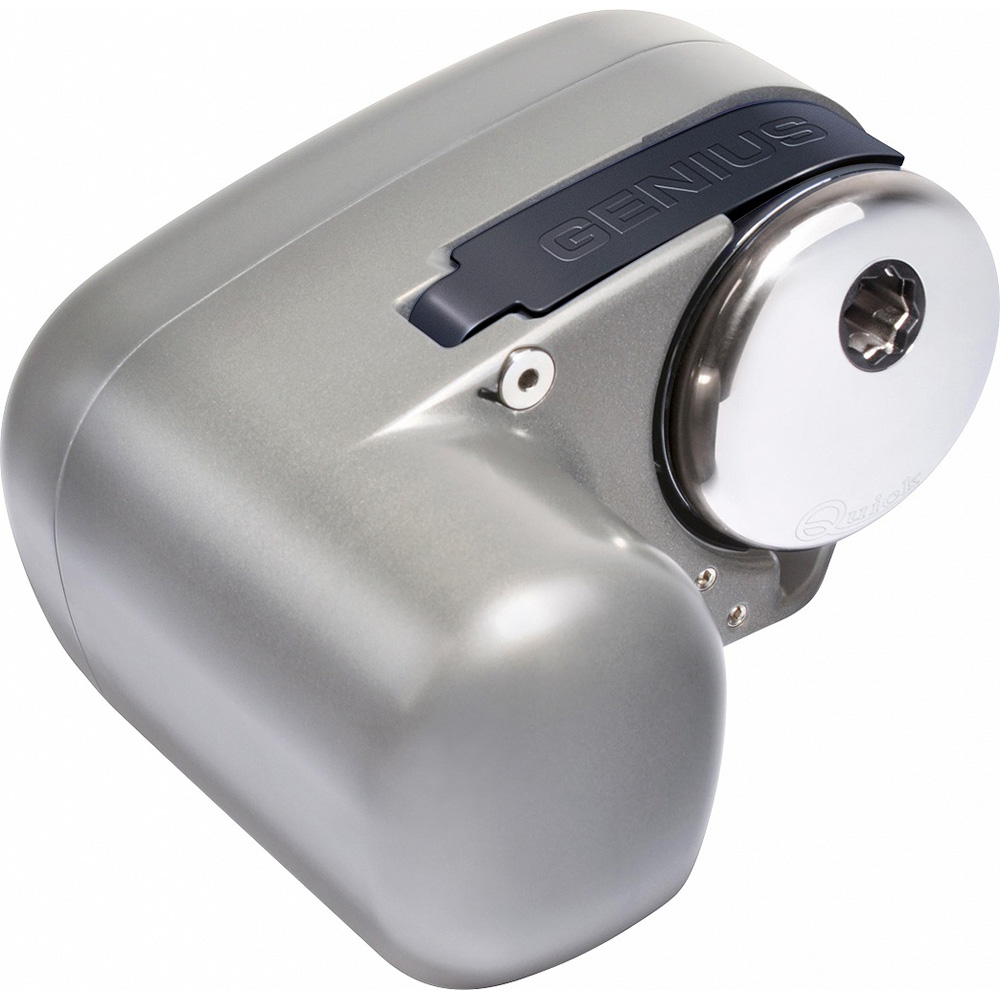

Genius GP2 2000 Windlass - 800W, 12V, 8MM or 5/16" Gypsy
The unit is sold complete with the windlass, solenoid unit, clutch handle, and mounting hardware.
Features:
- Horizontal on-deck windlasses
- For boats 26-43FT
- 8MM or 5/16" Gypsy
- Requires 5/8" three-stranded polyester rope
- Anodized aluminium in hard oxide base
- Rope and chain on a single gypsy
- Integrated sensor and magnet for chain counter
- Supplied with pressure lever
- IP66 watertight motor
- Epicyclic gearbox (GP2 1500-2000)
- Includes T6415-12 Solenoid
Specifications:
- Motor power - 800 W
- Motor supply voltage - 12 V
- Maximum pull - 900 Kg / 1984 lb
- Maximum working load - 350 Kg / 772 lb
- Working load - 120 kg/265 lb
- Current absorption @ working load - 96 A
- Maximum chain speed - 29,6 m/min / 97.1 ft/min
- Maximum chain speed @ working load - 20 m/min 65.6 ft/min
- Weight - 10,2 Kg / 22.4 lb
Accessories
- SKU 73077 — MFG# FTT641512000B00
