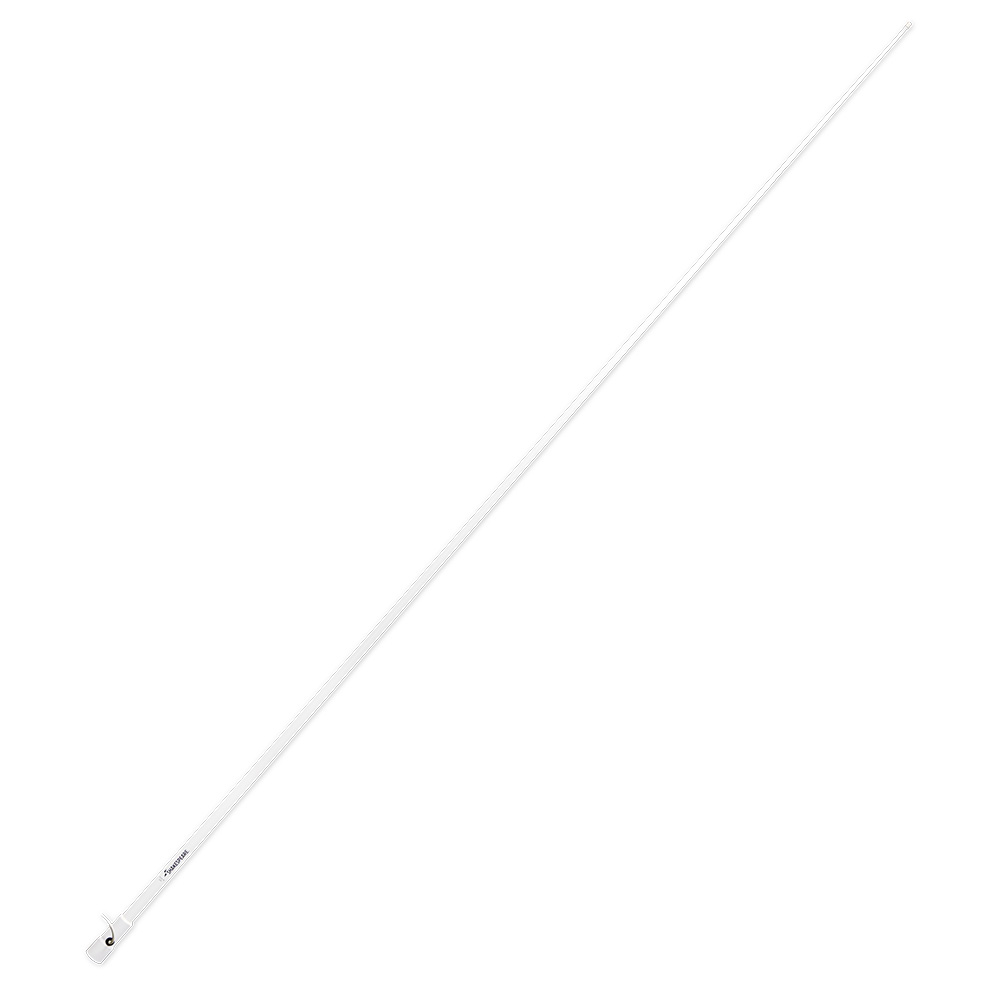

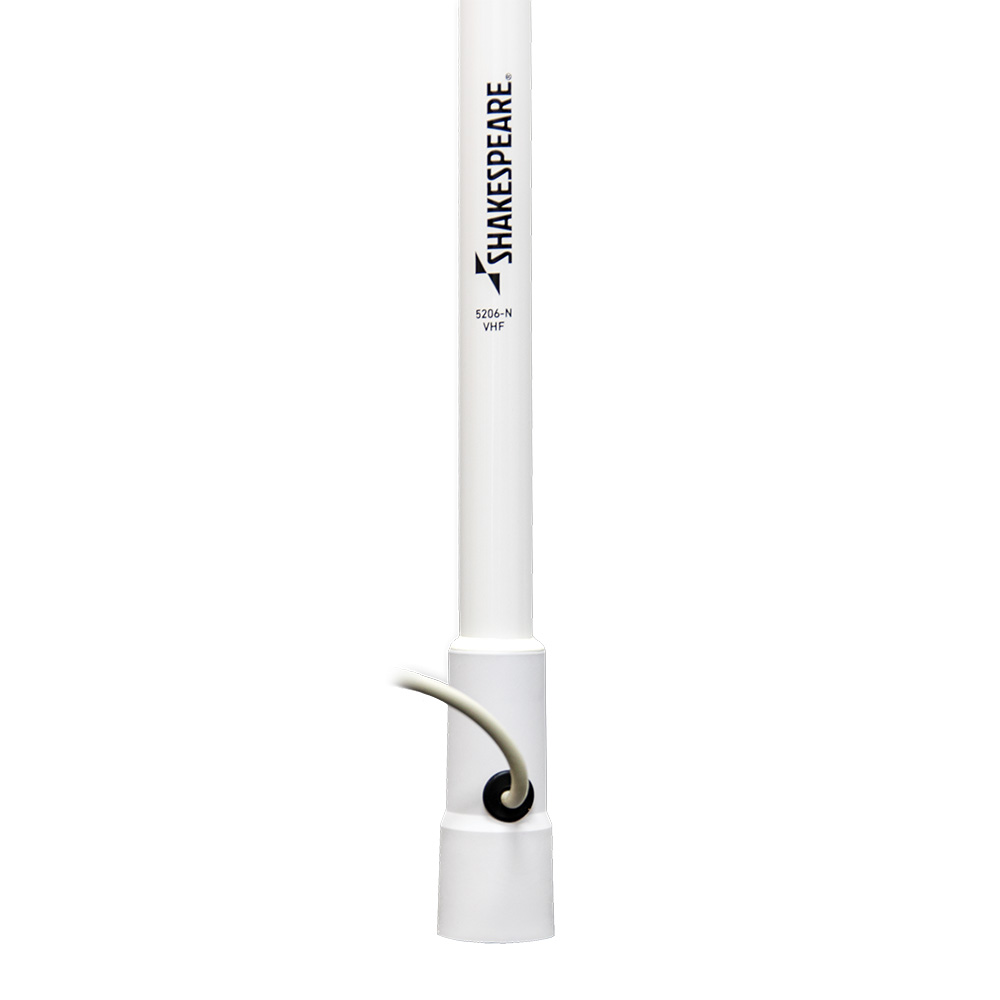

Shakespeare 5206-N 8' VHF Antenna

Name: Shakespeare 5206-N 8' VHF Antenna
Brand: Shakespeare
SKU: 10627
Price: 104.99 USD
Availability: OutOfStock

SKU 10627 MPN 5206-N UPC 719441100186 MFR Shakespeare

Back Order

Toronto, ON Vancouver, BC NJ, Warehouse FL, Warehouse

On Back Order

This item is currently on backorder. You can still place an order, but it will only ship once it’s back in stock.

$104.99

Ask a question about this product

Back to: Antennas

Shakespeare Style 5206-N VHF Marine - Reduced Length Version

8' LENGTH 6dB

END-FED WITH MATCHING STUB

Same as the Style 5206-C, but the 5206-N has a nylon ferrule.

An economical and lightweight, self-supporting antenna for good communications where range is not the predominant factor.

Quality copper cable elements for good range and efficiency
Nylon ferrule with standard 1"-14 thread
Includes 15' RG-58 cable and a PL-259 connector
Suggested mount: Shakespeare Style 495 Lift-n-Lay Mount or Style 4186 Ratchet Mount
Twin to: Shakespeare Styles 5205 and 5207 CB Marine antennas
One section
Shakespeare Limited Warranty: 2 years

Technical Specifications:

Frequency:	VHF Marine band
Bandwidth:	3 MHz
SWR:	1.5:1 @156.8 MHz
Impedance:	(Ohms): 50
Gain:	6 dB
Max Input (Watts):	50
DC Ground:	NO - the antenna will read "open circuit" when checked with an ohm meter or continuity tester.
Termination:	RG-58
Height (feet):	8
Polarization:	Vertical
Radiation pattern:	Omni-directional
