Fulton Single Speed Trailer Winch 900 lbs. - MW

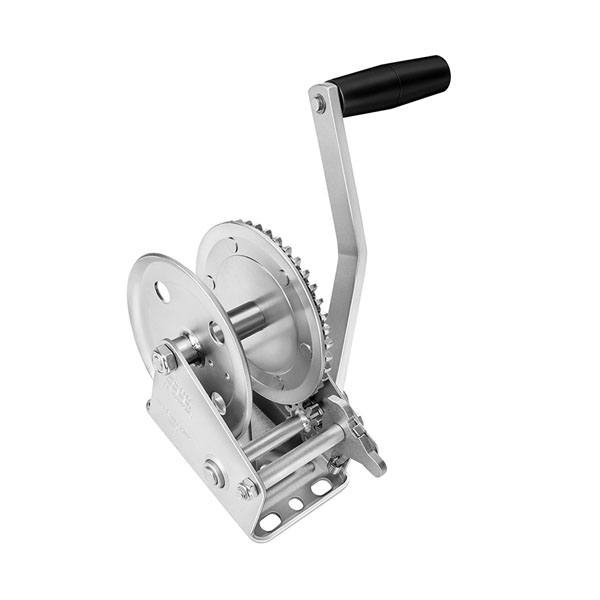

Fulton 142001 Single Speed Trailer Winch 900 lbs.
Fulton manufactures a full line of single speed winches designed to meet your toughest pulling demands. Their winches feature efficient gear ratios, full-length drum bearings, oil impregnated shaft bushings and a patented "Comfort Grip" handle for ease of cranking. All gears are high carbon steel for superb strength and long term durability. Stamped carbon steel frames provide rigidity for gear alignment and longer cycle life. Zinc finishes provide excellent corrosion resistance in all environments. All models are designed for use with rope or strap.
Features:
- ZMAX 600 zinc finish provides industry-leading corrosion protection
- Solid drum gear construction delivers smooth cranking
- Factory lubricated drive systems
- Limited 5 year warranty
- Strap and rope sold separately
Specifications:
-
Capacity: 900 lbs.
Handle length: 7"
Max Mechanical Advance: 39:1
Recommended Rope: 36' x 1/4"
Recommended Strap: 15' x 2"
Recommended Strap Bolt Sizes: 1/4" x 2-1/2" Grade 5
How to Select a Trailer Pulling Winch
To Select Winch Capacity:
- Minimum winch capacity = Maximum weight of boat including motor, fuel, gear ÷ 2
- Example:
- Boat, motor, fuel, gear weight = 2,800 lbs.
- 2,800 ÷ 2 - 1,400 lbs.
- Select a winch rated at 1,500 lbs.
- If shallow water or steep inclined launches are expected to be used, ÷ maximum weight by 1.5
- Example:
- Boat, motor, fuel, gear weight = 3,100 lbs.
- 3,100 ÷ 1.5 = 2,067 lbs.
- Select winch rated at 2,600 lbs.
Information sourced from the manufacturer: Fulton.
Click to Download Fulton 142001 Trailer Winch Installation Instructions
