Fulton Single Speed Trailer Winch 1100 lbs. - MW
This item is currently on backorder. You can still place an order, but it will only ship once it’s back in stock.

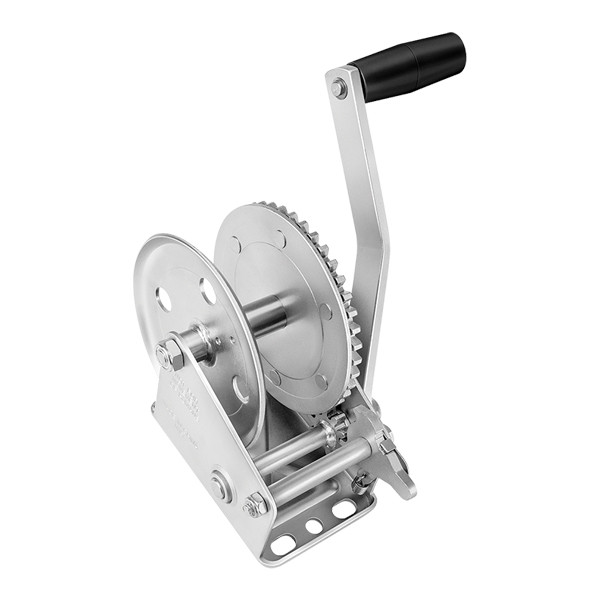

Fulton 142100 Single Speed Trailer Winch 1100 lbs.
Fulton Single Speed Trailer Winches are designed to meet your toughest pulling demands. This trailer winch has a 1100 pound capacity and features a ZMAX 600 zinc finish for superior corrosion resistance. This winch has a solid drum gear construction that delivers smooth cranking an durability. Additionally, Fulton single speed winches come with factory lubricated drive systems.
Features:
- Single speed winch
- 2-Way ratchet with neutral pawl
- Factory lubricated drive systems
- Solid drum gear construction
- ZMAX 600 clear zinc finish
- 5 Year limited warranty
- Strap and rope sold separately
Specifications:
- Capacity: 1,100 lbs.
- Handle length: 7"
- Max Mechanical Advance: 43:1
- Recommended Rope: 30' x 5/16"
- Recommended Strap: 20' x 2"
- Recommended Strap Bolt Sizes: 1/4" x 2-1/2" Grade 5
Replacement Handle: FUL-501107
How to Select a Trailer Pulling Winch
To Select Winch Capacity:
- Minimum winch capacity = Maximum weight of boat including motor, fuel, gear ÷ 2
- Example:
- Boat, motor, fuel, gear weight = 2,800 lbs.
- 2,800 ÷ 2 - 1,400 lbs.
- Select a winch rated at 1,500 lbs.
- If shallow water or steep inclined launches are expected to be used, ÷ maximum weight by 1.5
- Example:
- Boat, motor, fuel, gear weight = 3,100 lbs.
- 3,100 ÷ 1.5 = 2,067 lbs.
- Select winch rated at 2,600 lbs.
Information sourced from the manufacturer - Fulton.
Click to Download Fulton 142100 Trailer Winch Installation Instructions
