Fulton Easy Load Trailer Ball Mount 7500 lbs. GTW - MW
This item is currently on backorder. You can still place an order, but it will only ship once it’s back in stock.

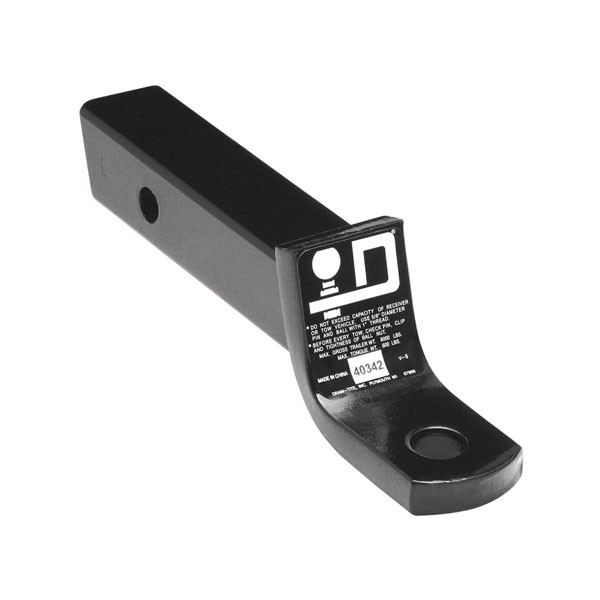

Fulton Class IV Easy Load Trailer Hitch Ball Mount 7500 lbs. GTW - 2" Hitch
Fulton Easy Load Trailer Ball Mounts feature a revolutionary tapered shank design that allows for easy connection to the receiver. Fulton Easy Load Ball Mounts are made of steel with a black powder coat finish over E-coat. This Class IV ball mount fits standard 2" square receiver openings and is backed by a limited lifetime warranty.
Features:
- Angled cut design
- Provides easy connection to receiver
- Black powder coat finish over E-coat
- Limited lifetime warranty
Specifications:
- Fits 2" square receiver tube opening
- Load Rating Class: IV
| Part Number | Rating GTW/TW (lbs.) | Ball Hole Size (in.) | Length (in.) | Rise (in.) | Drop (in.) |
| 40342 | 7,500 lbs. / 750 lbs. | 1" | 8-1/2" | 3/4" | 2" |
| 40344 | 7,500 lbs. / 750lbs. | 1" | 9" | 2-3/4" | 4" |
| 40346 | 7,500 lbs. / 750 lbs. | 1" | 9-1/2" | 4-3/4" | 6" |
How to Select the Right Fulton Easy Load Trailer Ball Mount
The below information is sourced from the manufacturer.
- Measure from the ground to the top of the hitch.
- Measure from the ground to the (inside) top of the trailer coupler (when level).
- Subtract the height of the hitch ball from the coupler measurement (most are 2-1/2" - 3" high)
The difference in the two measurements is the amount of ball mount rise or drop is required.
For the specifications above, keep in mind the following:
- Length = distance from the center of the ball hole to the center of the pin hole
- Rise = Distance from the top of the shank to the top of the ball platform
- Drop = Distance rom the top of the shank to the top of the ball platform
