Fulton Aluminum Trailer Hitch Ball Mount 8000 lbs. GTW - MW
Fulton Aluminum Trailer Hitch Ball Mount 8000 lbs. GTW - 2" Hitch

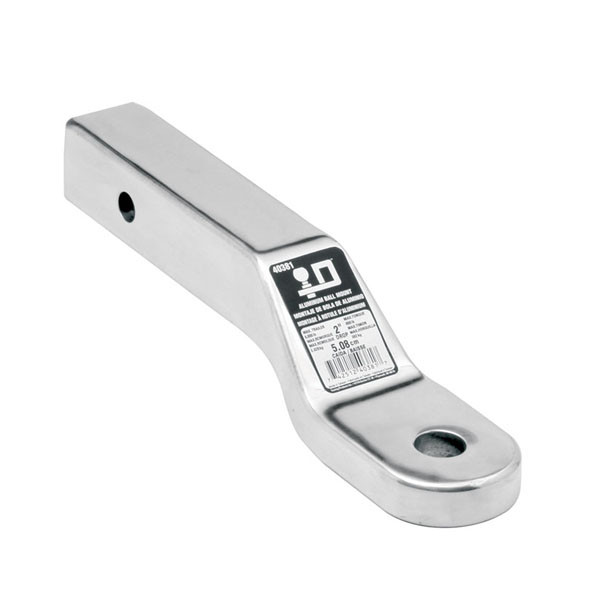

The Fulton Aluminum Trailer Ball Mount is a standard aluminum ball mount designed for towing loads up to 8,000 lbs. GTW, and a TW of 800 lbs. This ball mount features a solid one-piece forged construction with a highly polished, weather-resistant aluminum finish. The Fulton Aluminum Ball Mount is ideal for trucks with a two inch square box opening. Mount is backed by Fulton's limited lifetime warranty.
Features:
- Solid one-piece forged construction
- Highly polished, weather-resistant aluminum finish
- Limited lifetime warranty
Specifications:
- Fits 2" square receiver tube opening
- 1" Thick x 3" Wide ball platforms
- Load Rating Class: IV
| Part # | Rating GTW/TW | Ball Hole Size | Length | Rise | Drop |
| 40381 | 8,000 lbs. / 800 lbs. | 1" | 9-7/8" | 1" | 2" |
| 40382 | 8,000 lbs. / 800 lbs. | 1" | 10-5/8" | 3" | 4" |
| 40383 | 8,000 lbs. / 800 lbs. | 1" | 11-7/8" | 5" | 6" |
How to Select the Right Fulton Aluminum Trailer Ball Mount
The below information is sourced from the manufacturer.
- Measure from the ground to the top of the hitch.
- Measure from the ground to the (inside) top of the trailer coupler (when level).
- Subtract the height of the hitch ball from the coupler measurement (most are 2-1/2" - 3" high)
The difference in the two measurements is the amount of ball mount rise or drop is required.
For the specifications above, keep in mind the following:
- Length = distance from the center of the ball hole to the center of the pin hole
- Rise = Distance from the top of the shank to the top of the ball platform
- Drop = Distance rom the top of the shank to the top of the ball platform
