Dexter Kodiak Hub & Rotor 3,500lbs 10" One Axle Disc Brake Kit - MW
This item is currently on backorder. You can still place an order, but it will only ship once it’s back in stock.
Dexter Kodiak Hub & Rotor 3,500lbs 10" One Axle Disc Brake Kit K71-2H-10-DDD

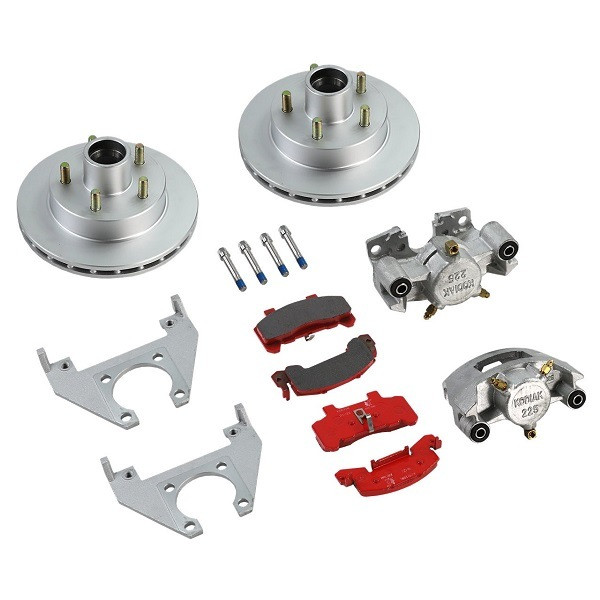

Upgrade your trailer’s braking system with this high-performance trailer disc brake kit. This complete kit includes two assemblies featuring Dacromet-plated rotors, cast iron calipers, and ductile iron mounting brackets, designed to provide superior braking power, reliability, and corrosion resistance. Perfect for trailers with 3,500 - 3,700lbs axles and wheels between 13" and larger, this disc brake kit is engineered to deliver more consistent and powerful stopping, even at highway speeds.
- Replaces 2/H-10-DDD-K, 2/HRCM-10-DAC-KIT
Disc Brake Kit Features:
- Easy Upgrade from Drum to Disc Brakes: Enhance your trailer's performance with consistent stopping power that offers dramatically shorter stopping distances, especially at highway speeds.
- Lower Maintenance Costs: With fewer moving parts than drum brakes, disc brakes mean lower maintenance costs with infrequent repairs.
- Dacromet Plating: Provides superior corrosion resistant and ensures rust protection from both fresh and saltwater uses.
- Integral Hub & Rotor Assembly: The one piece design minimizes the lateral runout, while preventing warping and providing a smooth, balanced ride. The vented design effectively dissipates heat to prevent damage.
- Industry Standard Bearings & Seals: Designed to work with standard bearings and seals, this assembly includes the necessary races for easy installation.
- Cast Iron Calipers: Self-adjusting calipers ensure smooth and even braking, with a low-drag design for cooler operation.
- Stainless Steel Piston: At 2-1/4" diameter, it is 30% larger than standard sizes to provide more braking torque and efficiency.
Hub & Rotor Specifications:
- Axle Capacity: 3,500lbs
- Spindle Type: #84
- Wheel Size: 13" & Larger
- Bolt Pattern: 5 on 4-1/2"
- Rotor Diameter: 10"
- Brake Flange: 4 Bolt
- Wheel Stud Diameter: 1/2"
Bearing, Race, and Seal Information
- Bearings
- Inner bearing: L68149
- Outer Bearing: L44649
- Races
- Inner race: L68111
- Outer race: L44610
- Seal: RG06-050
- Inner diameter: 1.719"
- Outer diameter: 2.565"
- Dexter Bearing Kit Part Number DEX-K71-G02-53 - Listed Size 1-3/8" x 1-1/16"
This kit does NOT contain caps, bearings, or grease seals. They will need to be purchased separately.
Why Choose This Trailer Disc Brake Kit? If you need reliable, long-lasting, and high-performance trailer brakes, this Dacromet-plated disc brake kit offers everything you need for a smoother, more efficient ride. Ideal for trailers with 3,500 lb axles, this kit provides better braking performance, increased durability, and lower maintenance costs—making it the perfect upgrade for those who demand more from their trailer braking system.
