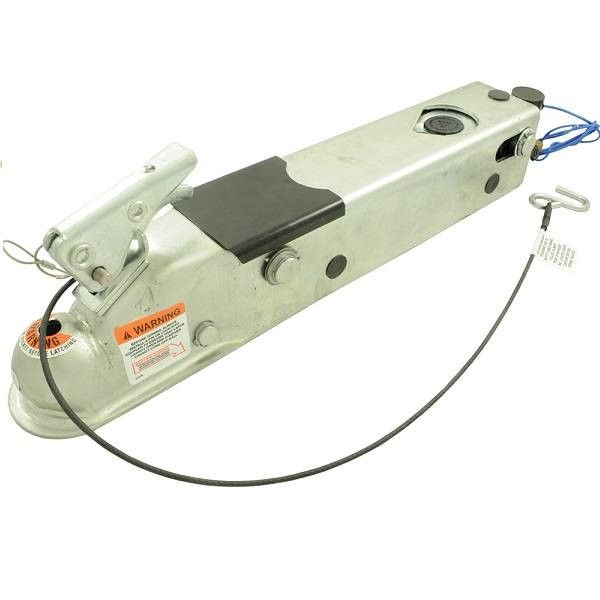

Dexter DX7.5L A75 Drop-N-Go Surge Actuator - Tandem Axle - MW
Dexter DX7.5L A75 Drop-N-Go Surge Actuator - Tandem Axle Replaces UFP
```html
The UFP A-75 Replacement Inner Member for Disc Brakes is designed to restore smooth, reliable braking performance to compatible UFP trailer brake actuators. Built for trailers using disc brakes, this replacement inner member features a linear stroke design that helps provide consistent brake line pressure throughout the actuator stroke, improving stopping power while reducing chucking during towing.
With a 7,500 lb. capacity and compatibility with 2" hitch balls, the A-75 inner member is a dependable replacement option for UFP actuators rated up to 8,400 lbs. It includes the inner member assembly with internal components, two set pins for securing it into the actuator housing, and a reverse lockout solenoid for added convenience when backing up.
UFP actuators rated at 8,400 lbs. and under share many of the same internal components, including the master cylinder, shock absorber, and roller pins. This common design helps simplify repairs and reduces the need for multiple replacement kits. The interchangeable housing dimensions also allow this inner member to fit UFP actuator housings rated 8,400 lbs. and under without removing the outer member from the trailer frame.
The A-75 uses an aluminum master cylinder for improved strength and corrosion resistance compared to plastic or steel designs. Its sealed reservoir diaphragm helps keep moisture away from the brake fluid, reducing the risk of corrosion within the brake system. The recessed reservoir cap helps protect against damage, while the included dipstick makes checking brake fluid levels quick and easy.
For secure coupling, the A-75 actuator uses an industry-standard lever lock latch. A visual indicator hole at the top of the ball socket helps confirm that the hitch ball is properly seated before towing.
Features:
- 7,500 lb. capacity
- Designed for use with disc brakes
- Fits 2" hitch balls with lever lock latch
- Fits UFP actuators with capacities of 8,400 lbs. or less
- Includes inner member with internal components
- Includes two set pins to secure the inner member into the housing
- Includes reverse lockout solenoid
- Aluminum master cylinder offers strength and corrosion resistance
- Sealed reservoir helps protect brake fluid from moisture contamination
- Quick, easy installation
- No need to remove the outer housing from the trailer frame
- Outer member is interchangeable with Titan Model 60, Titan Model 66, and select Demco actuator housings
```
