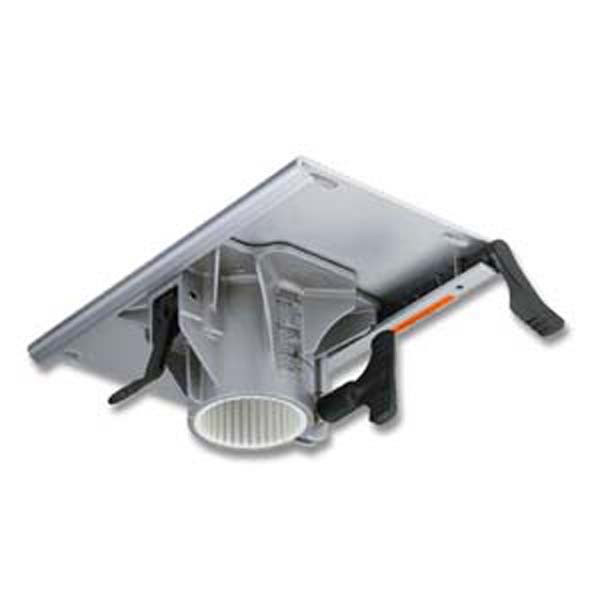

Garelick Millennium Series - Seat Slide System - Smooth Series Left Hand Lever - MW
Garelick Millennium Series - Seat Slide System - Smooth Series
The Garelick Millennium Smooth Series Seat Slide with left-hand lever delivers reliable performance for boat seating applications. This system features a low-profile design that provides 360-degree rotation with 10-degree increment locking and 6 inches of wobble-free fore and aft travel. Built from heavy-duty anodized aluminum with a powder-coated finish, the slide plate includes a standard 5"x12" hole pattern for universal seat compatibility. The positive lock spider mechanism with internal Delrin cup ensures smooth operation, while the secondary twist control offers variable drag adjustment. Adding just 1/2 inch to pedestal height, this ABYC-H31 Type A compliant system includes all necessary retaining hardware for straightforward installation.
Features:
- Low profile design allows 360° of rotation and 6" of smooth, wobble-free fore and aft travel
- Heavy duty anodized aluminum slide plate has standard 5"x12" hole pattern to accommodate standard seat mounting holes
- Positive Lock Spider - rotates 360°, internal cup engages in 10° increments for positive stop lock (Secondary twist control offers variable drag adj. and can be tightened to lock in place)
- Internal Delrin cup provides smooth, gaul-free operation.
- Available in either left- or right-hand operation
- Meets ABYC-H31, Type A Standards & Garelick performance standards
- Includes retaining hardware (99302)
- Powder coated finish
- SLIDE : High tensile aluminum profile extrusion 13.75" x 8" (35cm x 20cm) plate, mounting hole pattern 5" x 12" (13cm x 30cm), Fore and Aft travel 6" (15cm)
- SWIVEL : High tensile aluminum 2 7/8" (7cm) diameter, plastic internal cup. All stainless hardware.
