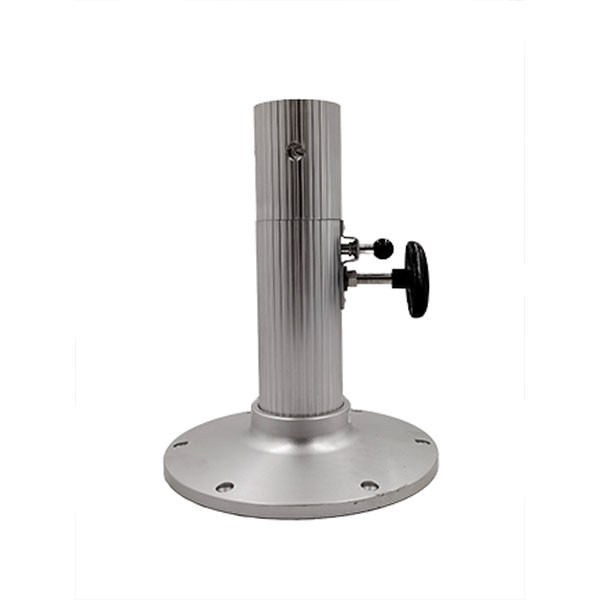

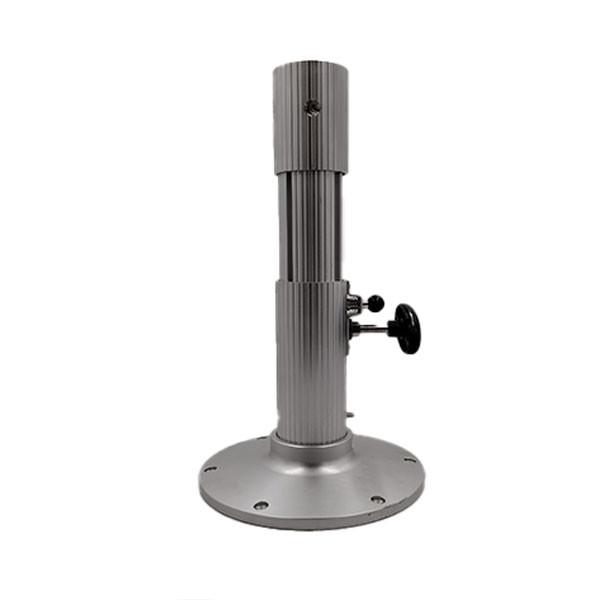

Garelick 75635 Blue Water Adjustable Boat Seat Pedestal with Satin Finish

The Garelick 75635 Blue Water Adjustable Boat Seat Pedestal offers height adjustment from 12" to 17" using a positive pin lock mechanism. This pedestal features an anodized satin finish that provides protection against saltwater corrosion and marine weathering. The pin type height lock lets you raise and lower the seat to your preferred position. Compatible with various Garelick 360° swivel seat mount spiders and fore & aft seat slides, this pedestal works with models 99023, 99026, and multiple hardware slide options. The durable construction and corrosion-resistant finish make it suitable for marine environments while maintaining a clean appearance on your boat.

Product Features:

Adjustable 12" - 17"
Anodized Finish
Satin Finish
Pin Type Height Lock
Positive Pin Lock

Use with:

Garelick 360° Swivel Seat Mount Spiders:

99023
99026

Garelick Hardware Fore & Aft Seat Slides:

20000
20001
21000
21001
75080*
75081*

75082
75083

*Use with 99023

Boat Seat Base Installation Instructions

Attach Swivel Casting to seat bottom

For EEZ-In seats with Pre-drilled T-nutted holes

Align holes in both swivel casting and seat bottom. Secure in position with four 1/4-20x1" machine screws

For seats without T-nutted holes

Center the swivel casting on seat bottom. Mark and rill the four hols for the swivel on the seat. Use an expansion type fastener (i.e. expansion screw anchor, etc.) best suited for boat seat's construction to secure swivel casting top seat

Note: fasteners NOT provided

Grease the inside of the swivel casting
Screw in the locking knob
Secure the seat base to the boat deck. This area should be adequately reinforced. Use a backing plate if necessary to make a secure attachment
Place seat with swivel casting on stanchion tube and secure in position with locking knob
Polish aluminum to extend longevity
