Pipe To Hose Brz Ftg 1/2 To 5/8 Hose - (MW)

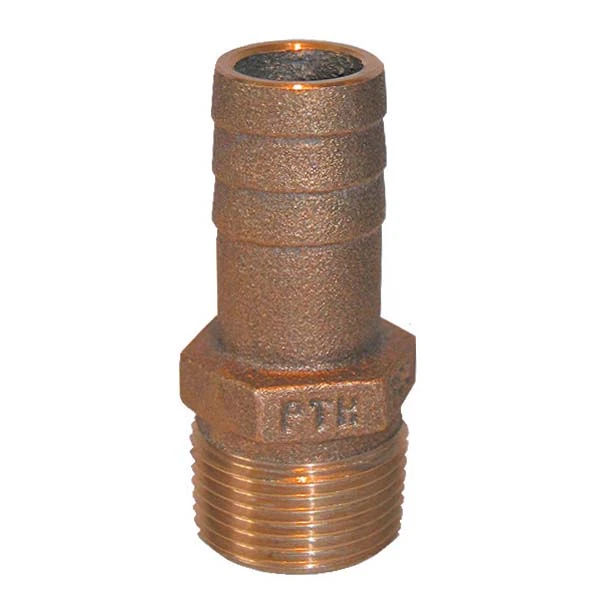

Groco Pipe to Hose Bronze Fitting

Groco bronze Pipe to hose fitting. Standard Flow - the hose ID is the same as the pipe size (ie: PTH-750 has 3/4" NPT pipe thread and accepts 3/4" ID hose).

• Sizes from 1/2" to 5"
• UL Listed 647B

Specifications:

• PTH-5062
• Thread NPT: 1/2"
• Hose ID: 1/2 or 5/8"
• A: 2.7
• B: 1.8

• PTH-750
• Thread NPT: 3/4"
• Hose ID: 3/4"
• A: 2.39
• B: 1.38
• PTH-1000
  • Thread NPT: 1"
  • Hose ID: 1"
  • A: 2.48
  • B: 1.38
• PTH-1250
  • Thread NPT: 1-1/4"
  • Hose ID: 1-1/4"
  • A: 2.65
  • B: 1.55
• PTH-1500
  • Thread NPT: 1-1/2"
  • Hose ID: 1-1/2"
  • A: 3
  • B: 1.9

Frequently Asked Questions

What is the Groco Pipe to Hose Bronze Fitting used for?

The Groco Pipe to Hose Bronze Fitting provides a standard-flow connection between NPT pipe threads and hose. The hose ID generally matches the pipe size, such as the PTH-750 accepting 3/4" ID hose with its 3/4" NPT thread.

What sizes are available for the Groco Pipe to Hose Bronze Fitting?

The Groco Pipe to Hose Bronze Fitting is available in sizes from 1/2" to 5". The supplied specifications list PTH-5062, PTH-750, PTH-1000, PTH-1250, and PTH-1500 models.

What hose size does the Groco PTH-5062 fitting accept?

The Groco PTH-5062 has a 1/2" NPT thread and accepts either 1/2" or 5/8" ID hose. Its listed A dimension is 2.7 and its B dimension is 1.8.

What hose size does the Groco PTH-750 fitting accept?

The Groco PTH-750 has a 3/4" NPT thread and accepts 3/4" ID hose. Its listed A dimension is 2.39 and its B dimension is 1.38.

Are Groco Pipe to Hose Bronze Fittings UL listed?

Yes. The Groco Pipe to Hose Bronze Fitting is UL Listed 647B according to the supplied product information.
