In-Line Ball Valve 1 1/4 - (MW)

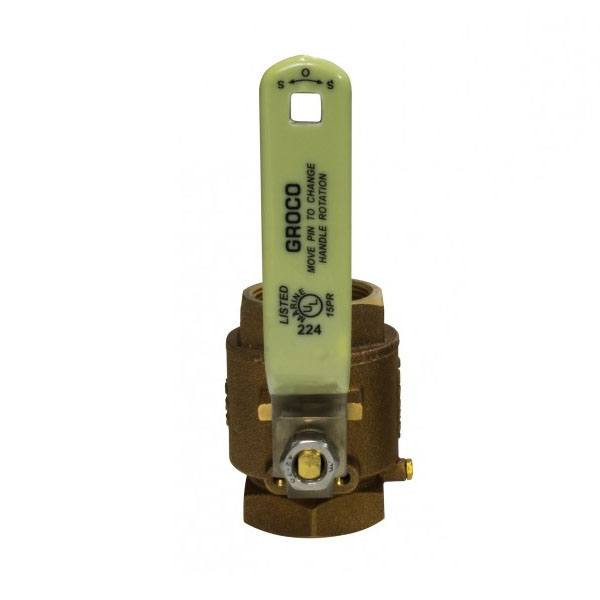

Groco IBV Series Full-Flow Flanged In-line Ball Valve
The Groco IVB Series In-Line Ball Valves are full-flow valves with a patented selectable handle rotation. The handle has a square hole to accept standard ratchet to help reach valves in hard-to-reach locations and ease actuation of difficult to operate valves.
Features:
- Female NPT threads
- 400 WOG rated
- C83600 bronze construction
- Stainless steel handle and hardware
- Chrome plated solid brass ball
- PTFE seats and seals
- Bonding attachment
- UL listed for fuel or water
- Fits Groco IBVF for Seacock applications
Specifications:
| Part Number | Thread NPT | A | B | C | D | E | Weight | Zerk Fitting |
| IBV-750 | 3/4" | 2.33" | 5.15" | 2.27" | 1.26" | 7.55" | 1.00 lbs. | Not Included |
| IBV-1000 | 1" | 2.79" | 5.93" | 2.48" | 1.47" | 7.58" | 1.70 lbs. | Not included |
| IBV-1250 | 1-1/4" | 3.18" | 6.54" | 2.65" | 1.71" | 8.05" | 2.24 lbs. | Included |
| IBV-1500 | 1-1/2" | 3.60" | 7.62" | 3.20" | 1.88" | 9.38" | 3.28 lbs. | Included |
Frequently Asked Questions
What is the Groco IBV Series Full-Flow Flanged In-line Ball Valve used for?
The Groco IBV Series Full-Flow Flanged In-line Ball Valve is a full-flow valve designed for fuel or water applications. It features female NPT threads, selectable handle rotation, and is specified to fit the Groco IBVF for seacock applications.
What is the Groco IBV Series Ball Valve made from?
The Groco IBV Series features C83600 bronze construction, a stainless steel handle and hardware, and a chrome-plated solid brass ball. It also uses PTFE seats and seals and includes a bonding attachment.
What pressure rating does the Groco IBV Series Ball Valve have?
The Groco IBV Series Ball Valve is rated at 400 WOG. It is also UL listed for fuel or water applications according to the supplied product description.
Can the Groco IBV Series Ball Valve handle be operated with a ratchet?
Yes. The handle has a square hole designed to accept a standard ratchet. This feature helps reach valves in hard-to-reach locations and can make actuating difficult-to-operate valves easier.
What thread sizes are available for the Groco IBV Series Ball Valve?
The IBV Series is available with female NPT thread sizes of 3/4", 1", 1-1/4", and 1-1/2". The available sizes correspond to models IBV-750, IBV-1000, IBV-1250, and IBV-1500, respectively.
Which Groco IBV Series models include a zerk fitting?
The IBV-1250 and IBV-1500 models include a zerk fitting. The IBV-750 and IBV-1000 models do not include one, according to the supplied specifications.
California Residents:
WARNING
Cancer and Reproductive Harm -
P65Warnings.ca.gov
Product Specifications
| Brand | Groco |
|---|---|
| Manufacturer Part No. | IBV-1250 |
| UPC | 742985141865 |
| Dimensions | 8" L × 4" W × 2.5" H |
| Shipping Weight | 2.49 lb |
| Shipping Box | 6x6x12" |
