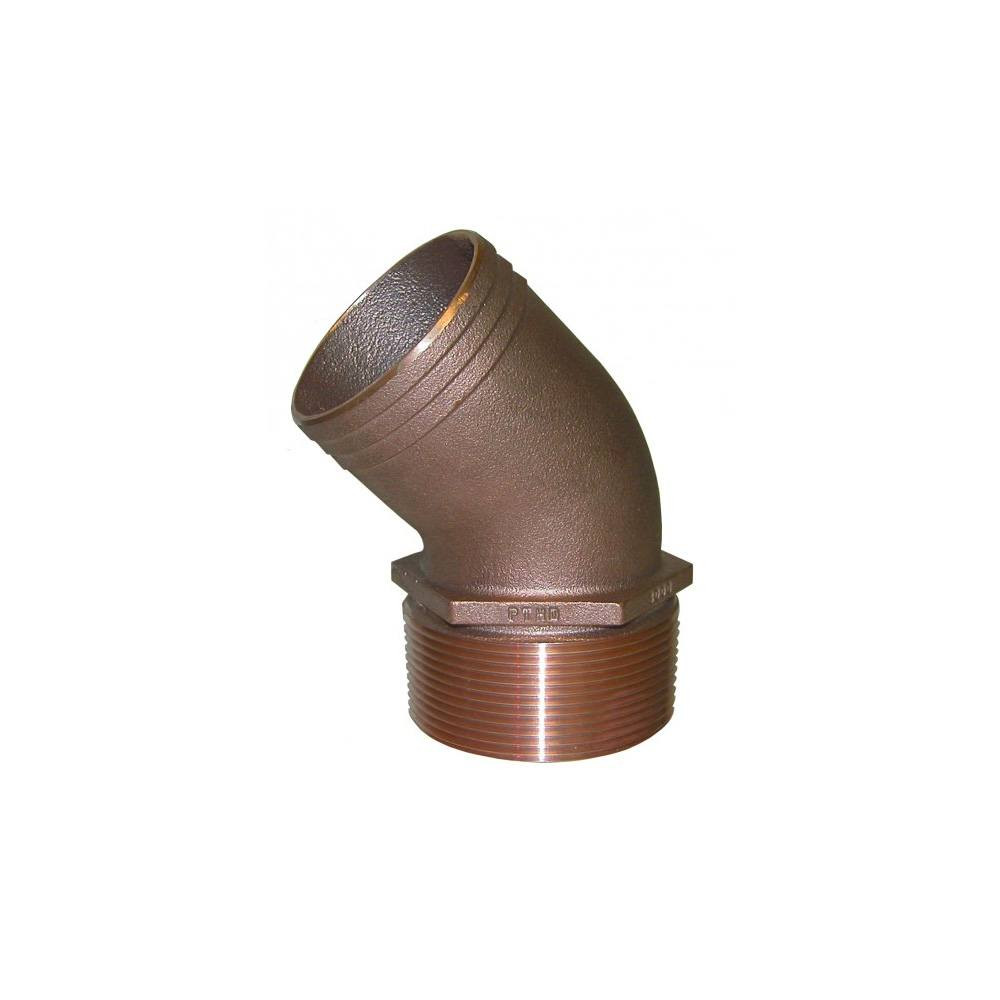

Groco NPT Bronze 45 Degree Pipe to Hose Fitting
The Groco PTHD 45 Degree Pipe to Hose Fitting is a 45 degree, standard flow fitting with a male NPT x hose connection. This fitting is constructed of C83600 bronze and is available in a range of sizes.
- Standard flow
- UL Listed 647B
Note: C83600 bronze fittings are not in compliance with NSF-61and therefore are not intended for use in potable water systems.
Specifications:
| Part Number | Thread NPT | Hose ID | A | B | Weight |
| PTHD-750 | 3/4" | 3/4" | 2.98" | 1.58" | .25 lbs. |
| PTHD-1000 | 1" | 1" | 3.15" | 1.63" | .36 lbs. |
| PTHD-1250 | 1-1/4" | 1-1/4" | 3.34" | 1.68" | .56 lbs. |
| PTHD-1500 | 1-1/2" | 1-1/2" | 3.73" | 1.99" | .82 lbs. |
WARNING: Cancer and Reproductive Harm - P65Warnings.ca.gov
