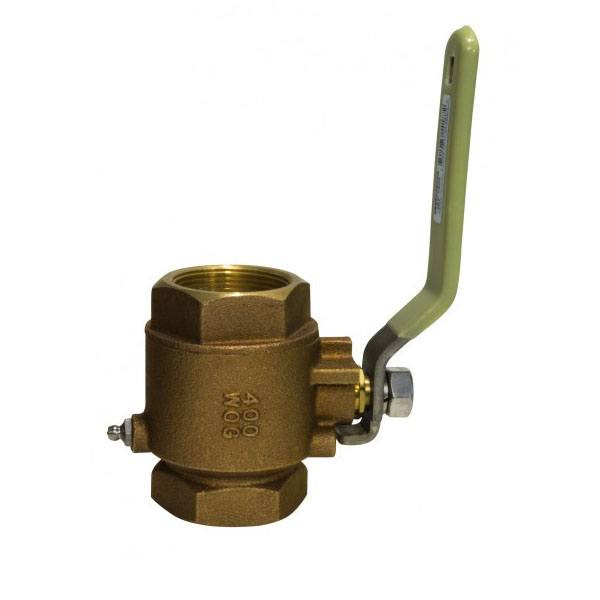

Groco IBV Series Full-Flow Flanged In-line Ball Valve

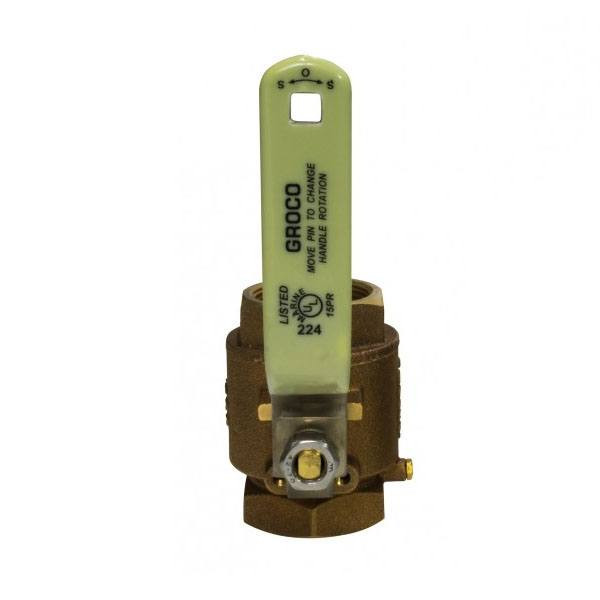

The Groco IVB Series In-Line Ball Valves are full-flow valves with a patented selectable handle rotation. The handle has a square hole to accept standard ratchet to help reach valves in hard-to-reach locations and ease actuation of difficult to operate valves.
Features:
- Female NPT threads
- 400 WOG rated
- C83600 bronze construction
- Stainless steel handle and hardware
- Chrome plated solid brass ball
- PTFE seats and seals
- Bonding attachment
- UL listed for fuel or water
- Fits Groco IBVF for Seacock applications
Specifications:
| Part Number | Thread NPT | A | B | C | D | E | Weight | Zerk Fitting |
| IBV-750 | 3/4" | 2.33" | 5.15" | 2.27" | 1.26" | 7.55" | 1.00 lbs. | Not Included |
| IBV-1000 | 1" | 2.79" | 5.93" | 2.48" | 1.47" | 7.58" | 1.70 lbs. | Not included |
| IBV-1250 | 1-1/4" | 3.18" | 6.54" | 2.65" | 1.71" | 8.05" | 2.24 lbs. | Included |
| IBV-1500 | 1-1/2" | 3.60" | 7.62" | 3.20" | 1.88" | 9.38" | 3.28 lbs. | Included |
