90 Deg Brz Elbow Pipe To Hose 1 1/2 - (MW)

Name: 90 Deg Brz Elbow Pipe To Hose 1 1/2
Brand: GROCO
SKU: GRO-PTHC-1500
Price: 53.49 USD
Availability: InStock

SKU GRO-PTHC-1500 MPN PTHC-1500 UPC 742985005020 MFR GROCO

Express

Toronto, ON Vancouver, BC NJ, Warehouse FL, Warehouse

"Express" items are automated and typically shipped out the next available business day and delivered within 4 days.

In Stock 5 available

$53.49

Ask a question about this product

Back to: Thru Hull Fittings & Strainers

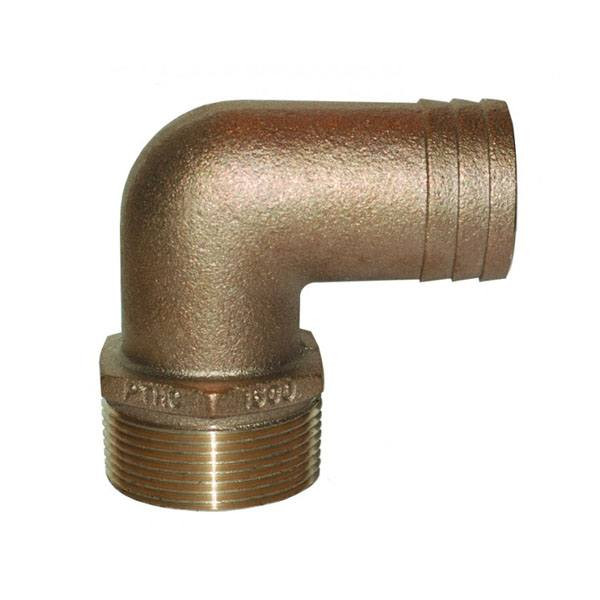

Groco 90 Degree Bronze Elbow Pipe To Hose Fitting

This Groco pipe to hose fitting provides a 90 degree male NPT to hose connection. It is constructed of C83600 bronze and is available in a variety of sizes.

Standard flow
UL Listed 647B

Note: C83600 bronze fittings are not in compliance with NSF-61 and therefore are not intended for use in potable water systems.

Specifications:

Part Number	Thread NPT	Hose ID	A	B	C	Weight
PTHC-5062	1/2"	1/2" or 5/8"	1.90"	2.00"	1.56"	.22 lbs.
PTHC-750	3/4"	3/4"	1.86"	2.05"	1.43"	.29 lbs.
PTHC-1000	1"	1"	2.34"	2.40"	1.63"	.54 lbs.
PTHC-1250	1-1/4"	1-1/4"	2.44"	2.53"	1.38"	.80 lbs.
PTHC-1500	1-1/2"	1-1/2"	2.50"	2.50"	2.25"	1.12 lbs.

Groco PTHC Series Fitting Diagram

Frequently Asked Questions

What is the Groco 90 Degree Bronze Elbow Pipe To Hose Fitting used for?

The Groco 90 Degree Bronze Elbow Pipe To Hose Fitting provides a 90 degree male NPT connection to a hose. It features standard flow and is constructed from C83600 bronze.

What sizes are available for the Groco 90 Degree Bronze Elbow Pipe To Hose Fitting?

The fitting is available with 1/2", 3/4", 1", 1-1/4", and 1-1/2" NPT threads. Hose ID options range from 1/2" to 1-1/2", depending on the part number.

Which hose sizes fit the Groco PTHC-5062 fitting?

The Groco PTHC-5062 fitting has a 1/2" NPT thread and accommodates either a 1/2" or 5/8" hose ID. It has a listed A dimension of 1.90", B dimension of 2.00", C dimension of 1.56", and weight of 0.22 lbs.

Are Groco C83600 bronze fittings suitable for potable water systems?

No. The supplied product information states that C83600 bronze fittings are not in compliance with NSF-61 and are therefore not intended for use in potable water systems.

Are Groco 90 Degree Bronze Elbow Pipe To Hose Fittings UL listed?

Yes. The Groco 90 Degree Bronze Elbow Pipe To Hose Fitting is UL Listed 647B according to the supplied product information.
