Jabsco HD4 HotShot Washdown Pump - MW
This item is currently on backorder. You can still place an order, but it will only ship once it’s back in stock.

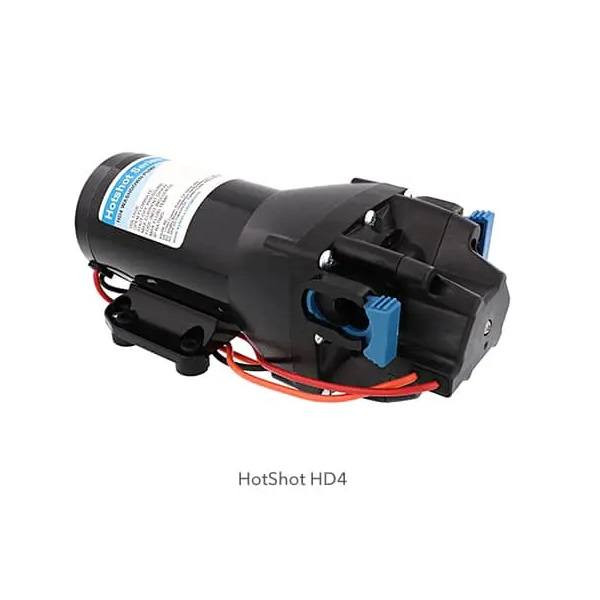

Jabsco HD4 HotShot 4GPM Washdown Pump
This Jabsco Washdown kit puts out is designed for use on yachts on all sizes. The Hotshot washdown kit harnesses 4GPM with 60PSI to make cleaning your decks, cockpits, and anchors with ease. These HotShot kits come with a wide diameter heavy duty motor that sits in a cast aluminum lower housing for unmatched durability with a long working life. For efficient and quiet operation this washdown kit utilizes dampening mounting feet for lessened vibration. This self-priming motor allows for a versatile installation and is able to run dry without damage to the system. The integrated, sealed pressure switch allows for on demand operation. This kit comes with all you need to get your boat spick and span.
The HotShot HD4 Washdown kit replaces the following Jabsco washdown kits: 32605-0092, 32605-0392, 31700-0092, 31700-0392, 82405-0092
Product Features:
- Efficient & Quiet Operation
- Versatile Installation
- Quick-Connect Ports
- 4GPM / 60PSI
- Heavy Duty Motor
- Can Run Dry
- Self-Priming Capability
- Integrated, Sealed Pressure Switch.

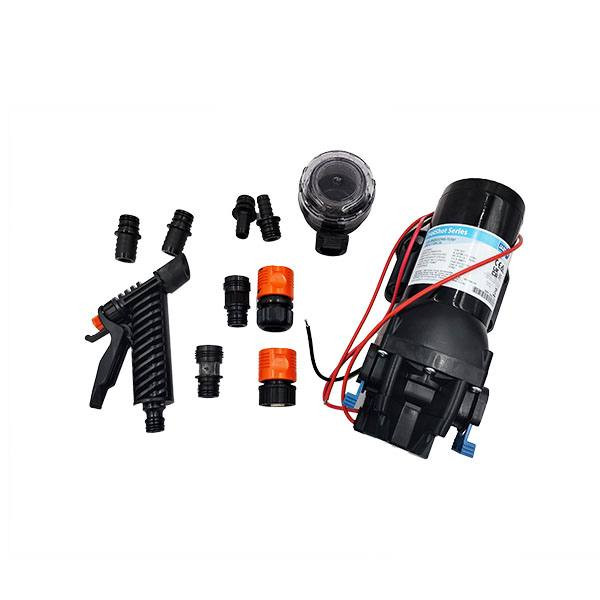

Kit Includes:
- 2 - 1/2" Straight Hosebarb
- 2 - 3/4" Straight Hosebarb
- 1 - 3/4" US GHT
- 1 - 90° Quick Connect 20 Mesh Strainer
- 1 - Standard Trigger Nozzle
- 1 - 1/2" Crimp Style Quick Connect Trigger ADapter
- 1 3/4" US GHT Quick Connect Trigger Adapter
Specifications:
- Nominal Voltage: 12VDC
- Flowrate: 4GPM (15.1 LPM)
- Max Amp Draw: 11.5A
- Recommended Fuse Size: 15
- Pressure Switch Off Setting: 60PSI (4.1 BAR)
- Fluid Temperature Range: 32° F - 140° F
- Dry Self-Priming Height: 8'
- Length: 9.4"
- Width: 4.1"
- Height: 3.8"
- Motor Height: 3.5"
- Mounting Length: 2"
- Mounting Width: 3.6"
- Pump Weight: 5.6 lbs
Click here for Jabsco HotShot HD4 Washdown Kit Technical Data Sheet
