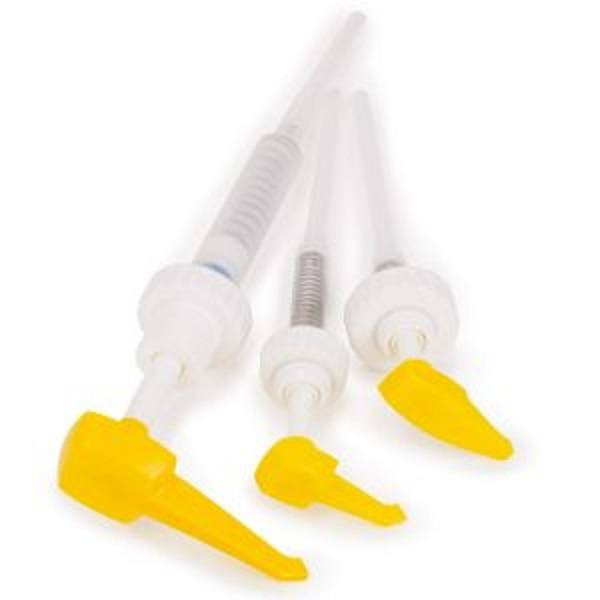

West System 300 Mini Pump Set

Designed to be a convenient and accurate way of metering West System 105 Resin Epoxy. The Set contains one resin pump and two hardener pumps that directly mount onto the containers of the resin/hardener, eliminating the mess from measuring by weight or volume. The 300 Mini Pumps are designed to deliver a proper working ratio. One full pump stroke of resin for each one full pump stroke of hardener. Made of durable polypropylene, with proper care these pumps can last.

FL OZ Delivery:

Resin 105, 205/206 Hardener - Pumps deliver approximately .8 fluid oz with each full stroke.
Resin 105, 207-209 Hardener - Pumps deliver approximately .9 fluid oz with each full stroke

The pumps are ready to install on the group size B containers. A package of extension tubes for size A containers is included with the set. Size Group C extension tubes are included in the 105-C Resin and the 207-SC or 209-SC packages.

Pump stroke Verification

The ratio of the Mini Pumps is controlled by the installation of a clip which limits the stroke (volume) of the pumps. The ratio verification test described in the instructions confirms that both pumps are dispensing the correct volume and that the ratio is within a narrow range.

Click here to download the 300 Mini Pump Instructions

Click here to download the 300 Mini Pump Supplement
