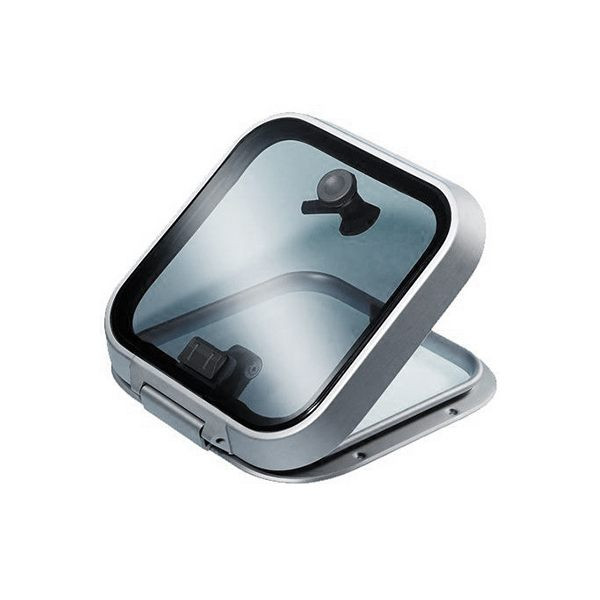

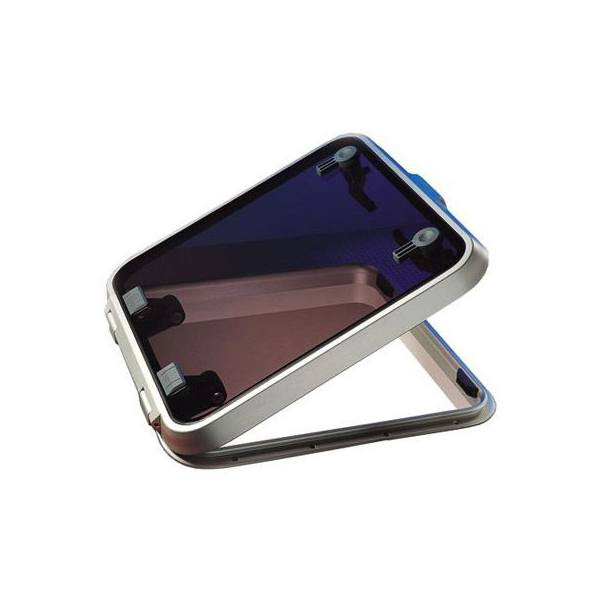

Lewmar Ocean Series Flange Base Hatch
This Lewmar Ocean Series Flange Base Hatch features a shock resistant acrylic lens. With a rugged construction build and attached hinges on the outside the frame, it provides ultimate protection against the elements and prevents leakage. This hatch also features a corrosion-resistant anodized aluminum frame with inset hinges, snag-resistant rounded corners and a flange base. The self supporting friction levers hold the lid open in any position up to 95° while the hatch opens 180° for easy access.
Features:
- Shock Resistant Acrylic Lens
- Rugged Construction For The Ultimate Protection Against The Elements
- Full Range Of Spare Parts Available
- Hatch Vent Position
- Hinges Are Attached Outside The Frame To Prevent Leakage
- Corrosion-Resistant Anodized Aluminum Frame With Inset Hinges, Snag-Resistant Rounded Corners and Flange Base
- Hatch opens 180° for easy access
- Unique Sealing System
- Self-Supporting – Friction Levers Hold Lid Open In Any Position Up To 95°
- Friction Hinge Allows For Any Open Position Without The Need For Support Arms
- Internal/External Lockable Handle Assemblies
- Simple Maintenance
- Conforms To CE Area 2: Deck, Coach Roof, Cockpit Or Transom Use (Tested To 2 psi)
- Fits Other Lewmar Standard Cut-Outs
- 3 Year Limited Warranty
Mounting Instructions:
- Fit To A Flat Surface With A Maximum Tolerance Of +/- 1mm.
- Fastening Size At Hinge Section Use (M6 / 1/4").
- Fastening Size For Lower Frame Use 5mm CSK Screw No.10 UNC 2 BA.
Specifications:
| Size | Acrylic Colour | Acrylic Window Thickness | Lower Frame | Hatch Weight | Radii | Length | Width | Height | Hinge Length | Hinge Width | Cut-Out Length Flat | Cut-Out Width Flat | Cut-Out Radii |
| 10 | Smoke Grey | 3/8" | 1" FLange | 5.77 lb | 2-15/16" | 12-3/4" | 12-3/4" | 1-9/16" | 3/16" | 5-7/16" | 10-1/4" | 10-1/4" | 1-11/16" |
| 40 | Smoke Grey | 3/8" | 1" Flange | 10.5 lb | 2-15/16" | 19-1/8" | 19-1/8" | 1-9/16" | 3/16" | 11-3/4" | 16-9/16" | 16-9/16" | 1-11/16" |

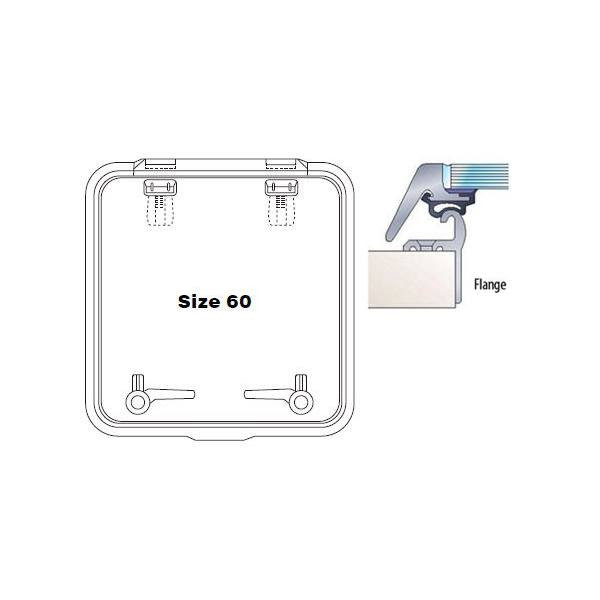

| 60 | Smoke Grey | 1/2" | 1" Flange | 17.6 lb | 3" | 22-5/8" | 22-5/8" | 1-11/16" | 3/16" | 14-7/16" | 19-15/16" | 19-15/16" | 1-11/16" |

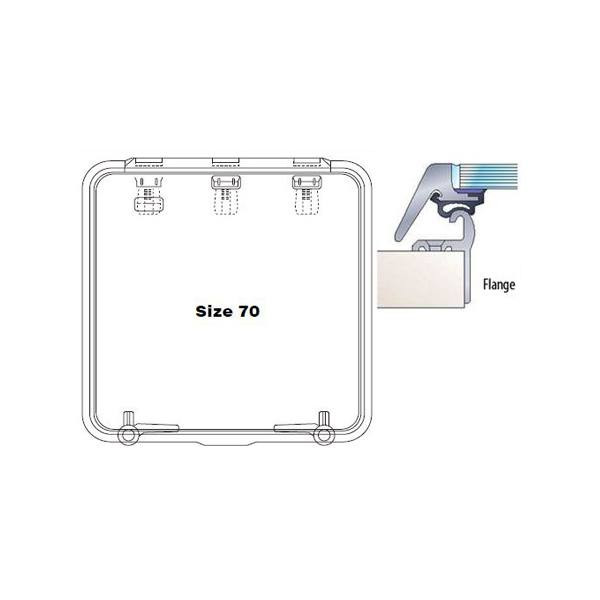

| 70 | Smoke Grey | 1/2" | 1" Flange | 23.8 lb | 3" | 27-5/16" | 27-5/16" | 1-11/16" | 3/16" | 19-3/16" | 24-1/2" | 24-1/2" | 1-11/16" |
Click here to download Lewmar Hatch Installation Instructions
