S S Open Base Cleat 5" - (MW)

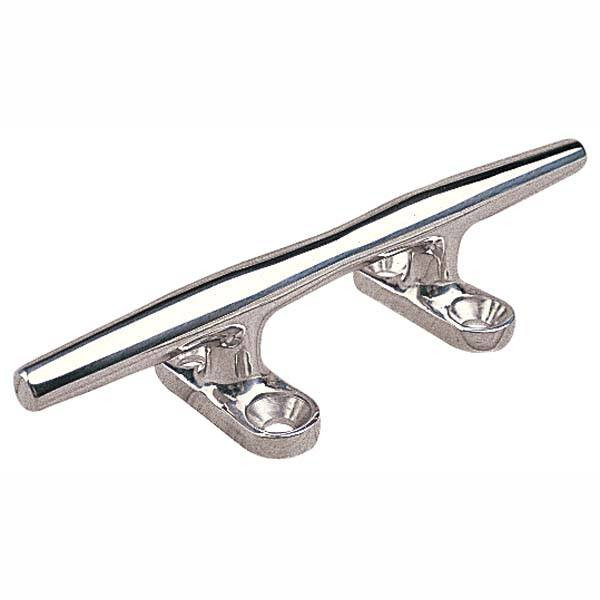

Sea Dog Stainless Steel Open Base Boat Cleat
Sea Dog 316 Stainless Steel Open Base Cleats provide easy line tie-off and corrosion resistance in a classic style. Four thru-bolts are required for installation (not included).
Dimensions:
|
Part Number |
A |
B |
C |
D |
Fastener |
|
041604-1 |
4" |
15/16" |
1-3/4" |
1" |
#10 FH |
|
041605-1 |
5" |
1-1/8" |
2-1/8" |
1" |
#10 FH |
|
041606-1 |
6" |
1-1/4" |
2-1/4" |
1-1/8" |
1/4" FH |
|
041608-1 |
8" |
1-1/2" |
2-13/16" |
1-3/8" |
1/4" FH |
|
041610-1 |
10" |
1-7/8" |
3-5/8" |
1-3/4" |
5/16" FH |
Frequently Asked Questions
What is the Sea Dog Stainless Steel Open Base Boat Cleat used for?
The Sea Dog Stainless Steel Open Base Boat Cleat provides a convenient point for tying off boat lines. It is made from 316 stainless steel and features an open-base design intended for marine applications.
What sizes are available for the Sea Dog Stainless Steel Open Base Boat Cleat?
The Sea Dog Open Base Boat Cleat is available in 4", 5", 6", 8", and 10" sizes. Part numbers 041604-1, 041605-1, 041606-1, 041608-1, and 041610-1 correspond to the respective cleat sizes.
What material is the Sea Dog Open Base Boat Cleat made from?
The Sea Dog Open Base Boat Cleat is constructed from 316 stainless steel. This material provides corrosion resistance for the cleat in marine applications.
How is the Sea Dog Stainless Steel Open Base Boat Cleat installed?
Four thru-bolts are required to install the Sea Dog Open Base Boat Cleat. The thru-bolts are not included. Select the appropriate fastener size for the cleat model being installed and verify the mounting location before installation.
What fastener size is required for each Sea Dog Open Base Boat Cleat?
The 4" and 5" cleats use #10 FH fasteners. The 6" and 8" cleats use 1/4" FH fasteners, while the 10" cleat uses 5/16" FH fasteners. Four thru-bolts are required for installation and are not included.
What are the dimensions of the Sea Dog Open Base Boat Cleats?
The available cleats have the following dimensions: 4" model, A 4", B 15/16", C 1-3/4", D 1"; 5" model, A 5", B 1-1/8", C 2-1/8", D 1"; 6" model, A 6", B 1-1/4", C 2-1/4", D 1-1/8"; 8" model, A 8", B 1-1/2", C 2-13/16", D 1-3/8"; and 10" model, A 10", B 1-7/8", C 3-5/8", D 1-3/4".
California Residents:
WARNING
Cancer and Reproductive Harm -
P65Warnings.ca.gov
Product Specifications
| Brand | Sea Dog Marine |
|---|---|
| Manufacturer Part No. | 041605-1 |
| UPC | 035514041089 |
| Dimensions | 7.88" L × 3.88" W × 1.5" H |
| Shipping Weight | 0.29 lb |
| Shipping Box | 6x6x12" |
