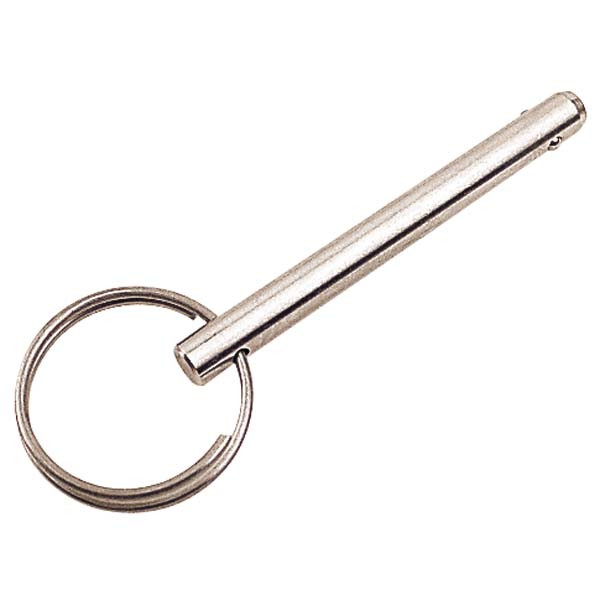

Release Pin 1/4" X 1 1/2" Ss - (MW)

Sea Dog Stainless Steel Quick Release Pins

Sea Dog standard duty detent release pins are ideal for basic holding and removal applications that don't require a positive locking ball feature. These release pins are constructed of corrosion-resistant formed 304 stainless steel and include a split ring for attachment of optional lanyard.

These pins are activated by push or pull motion, and their robust design is suitable for repetitive-use applications. The detent ball depresses and springs up for "quick release" applications. Ideal for anchor clevis fittings, hinge pins or to replace cotter pins where frequent removal is necessary.

• Includes split ring
• Formed 304 Stainless Steel Construction
• Sold in Pairs

 Dimensions:

193410

• A: 1/4"
• B: 1"
• C: 3/4"
• D: 7/16"
• E: 1"

193415

• A: 1/4"
• B: 1-1/2"
• C: 1-1/4"
• D: 7/8"
• E: 1"

Frequently Asked Questions

What are Sea Dog Stainless Steel Quick Release Pins used for?

Sea Dog Stainless Steel Quick Release Pins are designed for basic holding and removal applications where a positive locking ball feature is not required. They can be used for anchor clevis fittings, hinge pins, or as replacements for cotter pins where frequent removal is necessary.

What are Sea Dog Stainless Steel Quick Release Pins made from?

These quick release pins are constructed from corrosion-resistant formed 304 stainless steel. They feature a detent ball that depresses and springs back up to provide a quick-release function for repetitive-use applications.

Do Sea Dog Stainless Steel Quick Release Pins include lanyards?

No lanyard is included, but each pin includes a split ring for attachment of an optional lanyard. The split ring provides a connection point for securing the pin during use.

How do Sea Dog Stainless Steel Quick Release Pins work?

The pins are activated by a push or pull motion. Their detent ball depresses and springs back up to hold the pin in place while allowing quick removal when needed.

How many Sea Dog Stainless Steel Quick Release Pins are included?

Sea Dog Stainless Steel Quick Release Pins are sold in pairs. The available dimensions include 193410 with a 1/4" A dimension and 193415 with a 1/4" A dimension; verify the remaining dimensions for the specific part you need.
