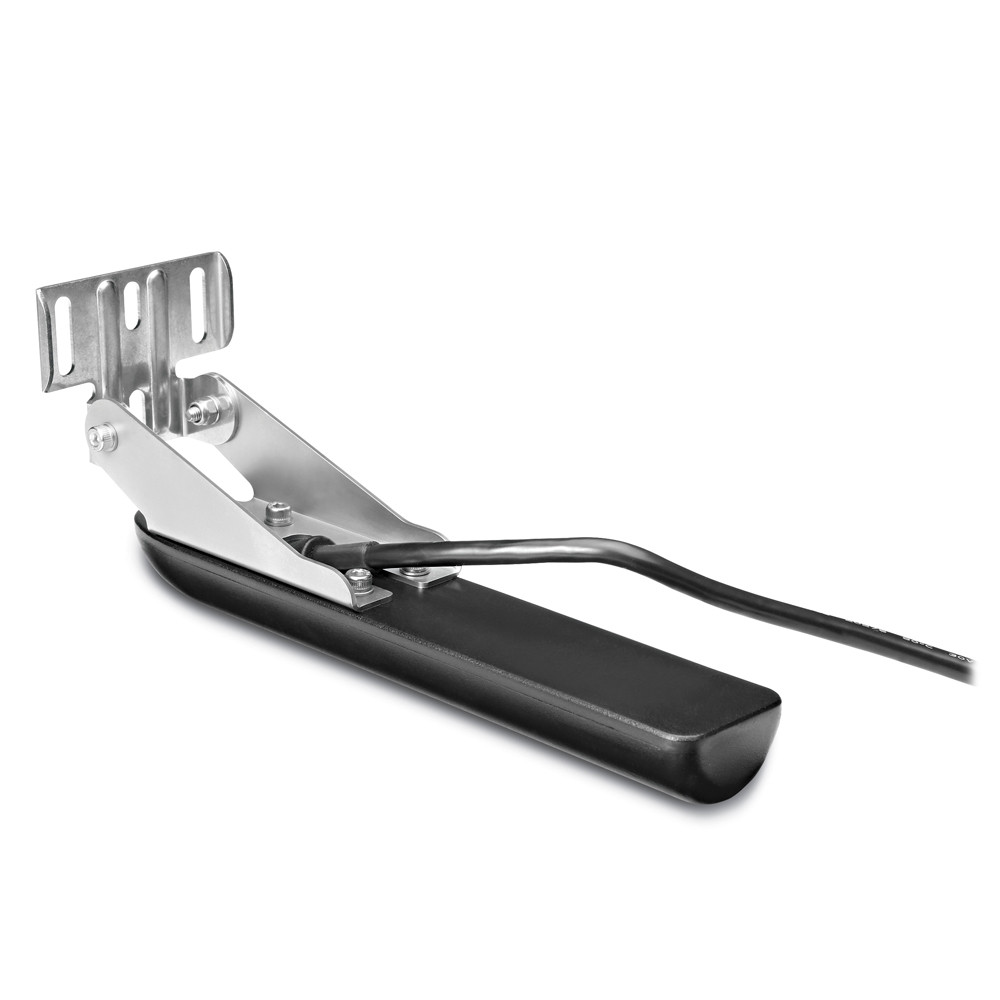

Garmin 010-01961-00 GT30-TM DownVu/SideVu 12-Pin Transom Mount Transducer f/GCV 10 - 20' Cable - MW

DownVü™/SideVü™ 12-Pin Transom Mount Transducer for GCV™ 10

Get ultra-clear sonar pictures of objects, structure and fish that pass below and to the side of your boat with this 12-pin transducer.

This 20' transducer cable with built-in fast response temperature sensor has a power rating of 500 W per element (1,500 W total); a depth of 750 ft
(DownVü™) and 500 ft left and right (SideVü™) an operating frequency of 455/800 kHz; and a 0 to 70 transom angle. Pair it with your GCV™ 10 black box sonar.

Transducer comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

Compatible Devices:

• GCV™ 10

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Temperature: Yes
• Speed Included: No
• Pins: 12
• Cable Length (Feet): 20'
• Mounting Style: Transom
• Imaging: Down/Side
• Chirp: Non Traditional
• Box Dimensions: 3"H x 7"W x 9"L WT: 1.8 lbs
• UPC: 753759152796
