Garmin 010-01960-00 GT20-TM Transom Mount - 4-Pin - MW
Transom Mount DownVü 500W (CHIRP 455/800 kHz) Traditional 500 W (77/200 kHz) Transducer w/Temp - 4-Pin
Get ultra-clear sonar pictures of objects, structure and fish that pass below your boat with this all-in-one 4-pin transducer.
This 20 ft transducer cable with built-in fast response temperature sensor has a power rating of 500 W; a depth of 1,900 ft (traditional) and 750 ft (DownVü); an operating frequency of 77/200 kHz (traditional) and 455 kHz (DownVü); and a 0 to 70 transom angle.

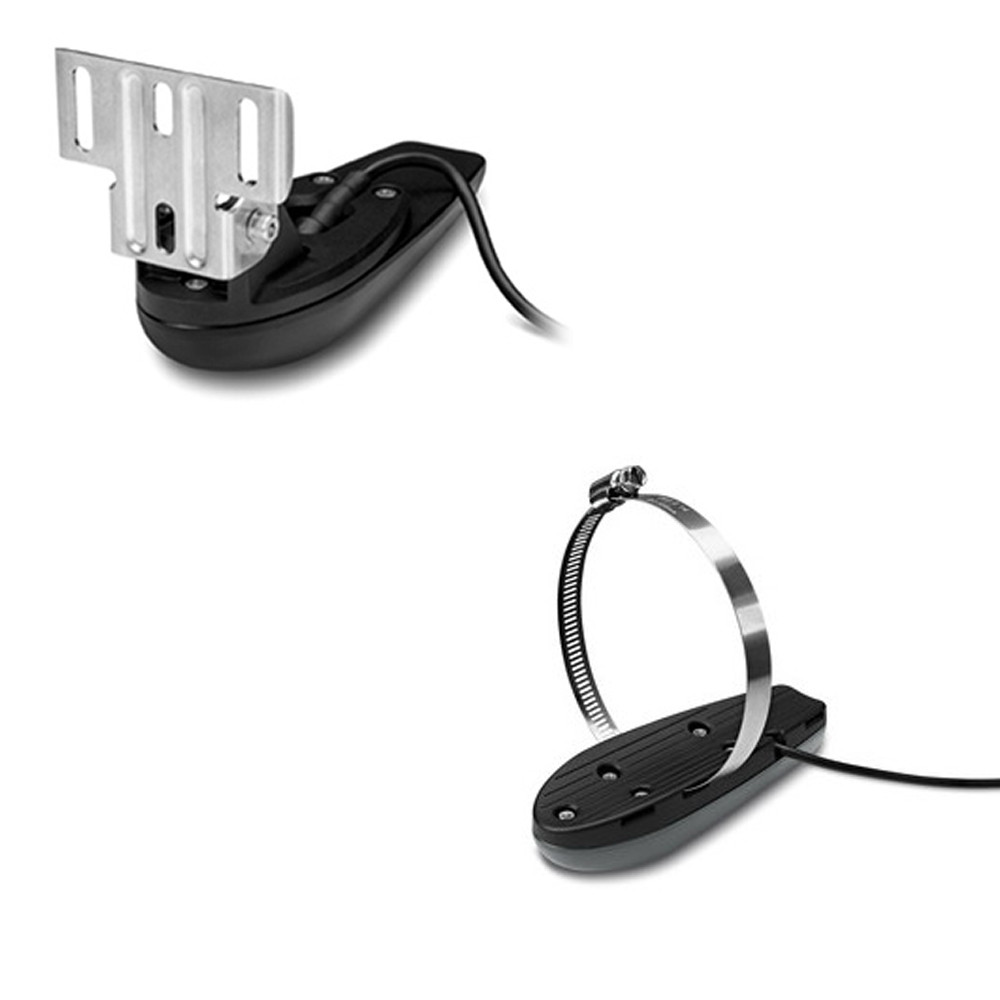

Transducer comes with transom and trolling motor mounts, and installation instructions. Follow the instructions carefully to avoid damaging your boat.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Pins: 4
- Mounting Style: Transom
- Imaging: Standard/Down
- Chirp: Non Traditional
- Cable Length (Feet): 20'
- Temperature: Yes
- Speed Included: No
- Box Dimensions: 4"H x 7"W x 9"L WT: 1.4 lbs
- UPC: 753759152758
