RitchieCompass Ritchiesport In-Dash - White - (MW)

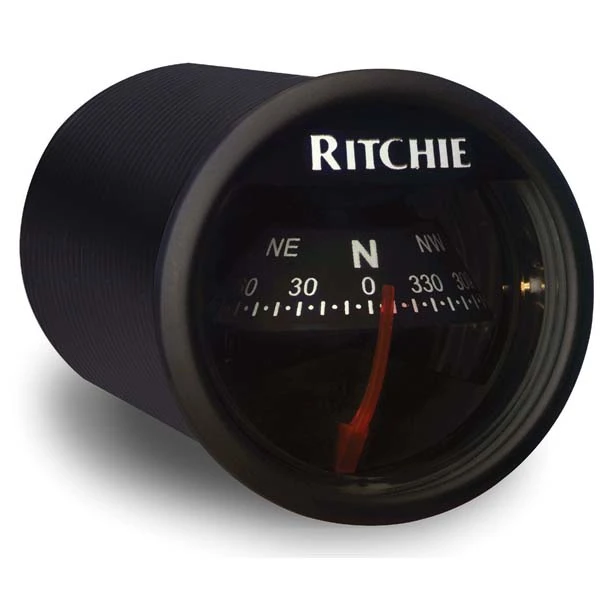

Ritchiesport X-23 In-Dash Marine Compass - Black

The Ritchie RitchieSport Marine Compass is a reliable navigation tool for boaters that is easy to install. This compass installs right into your dash, fitting standard 2" gauge holes. RitchieSport Compasses feature a Direct-Read Dial, which allows you to see the compass heading and lubber line from directly in front. A new back clamping device improves performance and durability. Shop with confidence knowing each Ritchie Compass uses a Hardened Steel Pivot and Triple Cup Sapphire Jewel movement, providing smooth dial operation and fast lock-on, even under the most severe conditions.

Replaces X21 Model

Features:

• Direct Reading Dial
• Backing Plate
• Easily Installed
• View Adjusts up to 30 degrees
• Scientifically Matched Sapphire Jewel & Hardened Steel Pivot Dial Movement
• Exclusive Built-in Green NiteVu Lighting
• High Temperature Composite Construction for Extended Operating Range
• DirectiveForce Magnets
• Exclusive 5-Year Ritchie Warranty

Specifications:

• Dial Size: 2"
• Mounting Hole: 2-1/16" Std. 2" gauge hole

Frequently Asked Questions

What is the Ritchie RitchieSport X-23 In-Dash Marine Compass used for?

The Ritchie RitchieSport X-23 In-Dash Marine Compass is designed to provide boaters with a direct-read compass heading from the dashboard. It installs into a standard 2-inch gauge hole and features a dial that lets you view the heading and lubber line directly from in front.

What size mounting hole is required for the RitchieSport X-23 compass?

The RitchieSport X-23 Marine Compass has a 2-inch dial and requires a 2-1/16-inch mounting hole, which is specified as a standard 2-inch gauge hole. Its in-dash design is intended for easy installation in the appropriate dashboard opening.

Can the RitchieSport X-23 compass be adjusted for viewing angle?

Yes. The RitchieSport X-23 features a view that adjusts up to 30 degrees, allowing the compass to be positioned for easier viewing from the dashboard. It also uses a direct-reading dial so the heading and lubber line can be viewed from directly in front.

What type of movement does the RitchieSport X-23 marine compass use?

The RitchieSport X-23 uses a scientifically matched sapphire jewel and hardened steel pivot dial movement. This design provides smooth dial operation and fast lock-on. The compass also features DirectiveForce Magnets as part of its compass construction.

Does the RitchieSport X-23 marine compass have built-in lighting?

Yes. The RitchieSport X-23 features Ritchie's exclusive built-in green NiteVu lighting. This lighting is integrated into the compass and is designed as part of the compass's features for viewing the dial.

What construction features does the RitchieSport X-23 compass have?

The RitchieSport X-23 uses high-temperature composite construction for an extended operating range and includes a backing plate and back clamping device. It is also equipped with a hardened steel pivot and triple cup sapphire jewel movement, and it replaces the X21 model.
