Garmin 010-10327-20 P79 600W In-Hull Transducer 50-200kHz - 8 Pin - MW

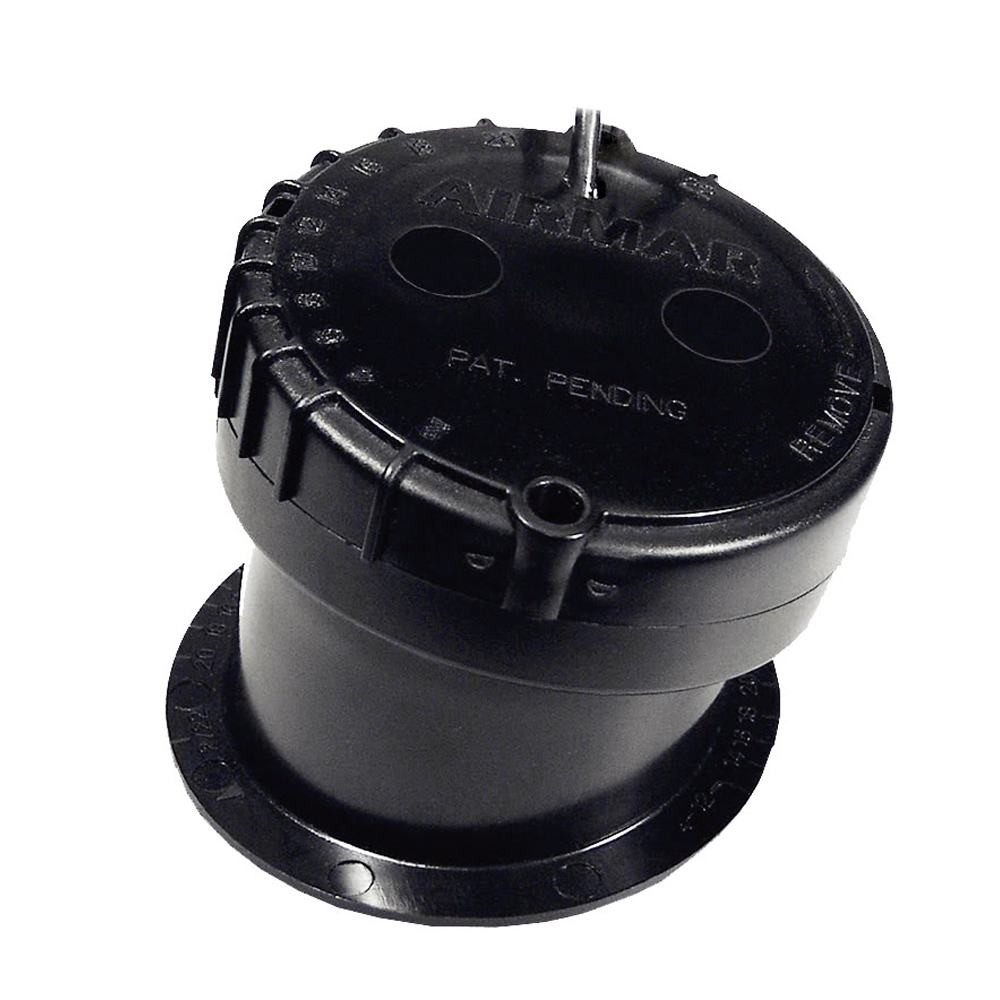

Airmar P79 Adjustable 200/50kHz Plastic In-hull Transducer (8-pin)
010-10327-20
This entry level in-hull transducer with an adjustable deadrise angle makes installation a snap.
The 8-pin 600 W transducer has a depth of 800 to 1,200 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 45 to 12 degrees; and a 0 to 22 degree deadrise.
Transducer kit comes with installation instructions*. Follow the instructions carefully to avoid damaging your boat.
*Fiberglass should be no more than 5/8" thick. Not recommended for cored hulls.
When using with a 6-pin Garmin sounder, transducer adapter cable part number 010-11612-00 is required.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Pins: 8
- Mounting Style: In-Hull
- Imaging: Standard
- Chirp: No
- Cable Length (Feet): 25'
- Temperature: No
- Speed Included: No
- Box Dimensions: 5"H x 7"W x 9"L WT: 2.7 lbs
- UPC: 801769000153
Owner's Manual (pdf)
Brochure (pdf)
