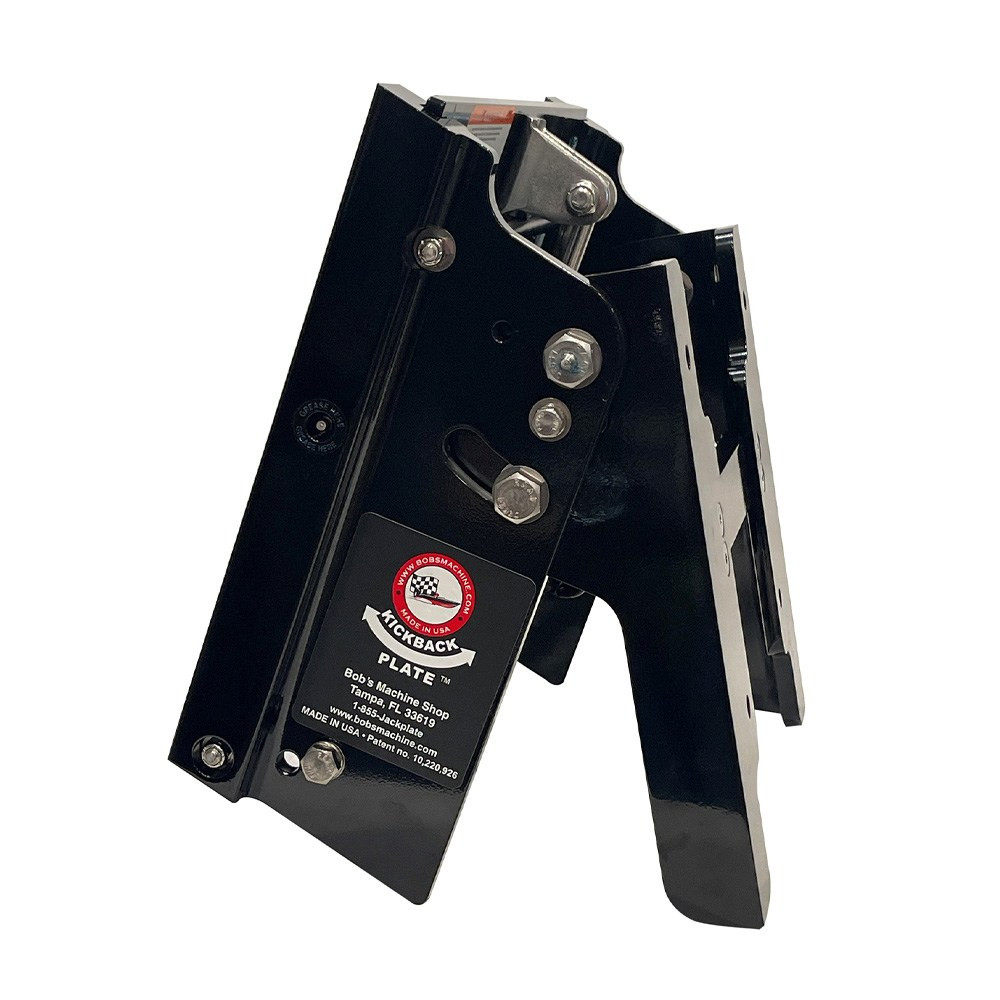

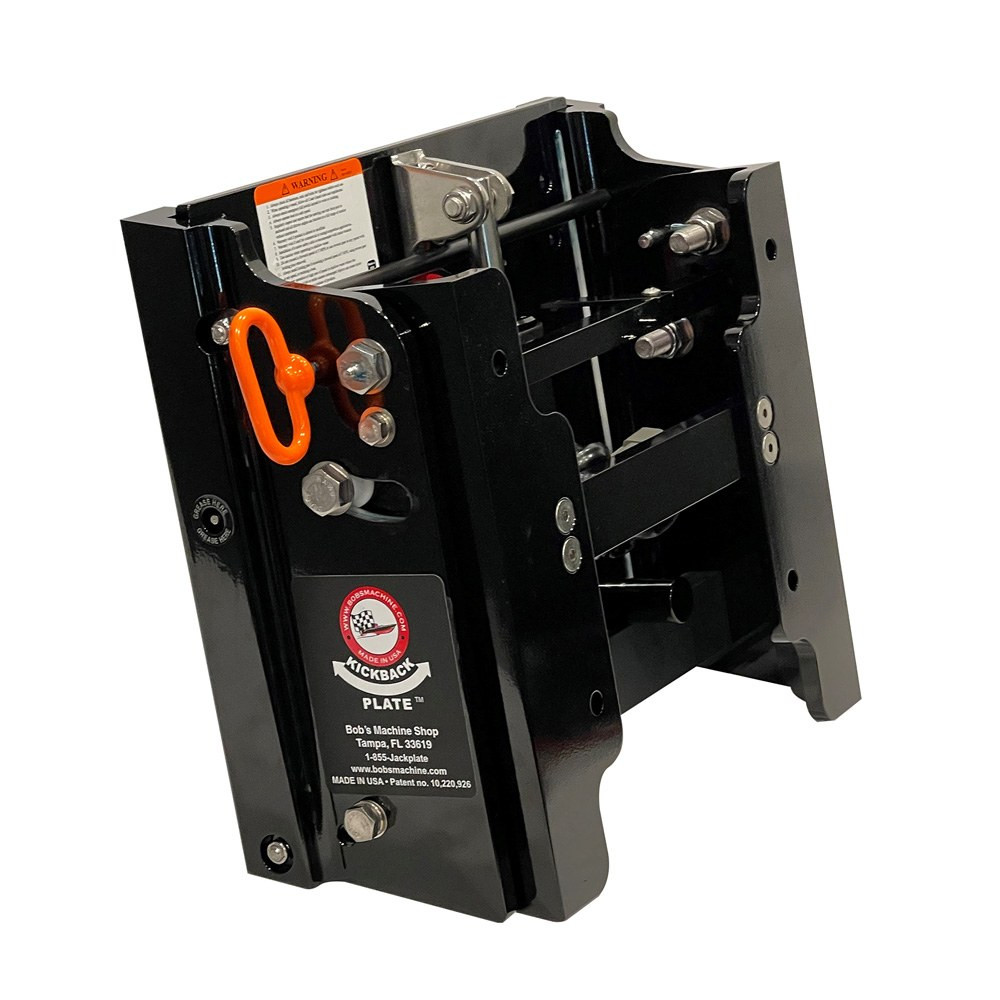

Bob's Machine 6" Action Series Hydraulic Kick-Back Jack Plate - MW
Bob's Machine 6" Action Series Hydraulic Kick-Back Jac – Powder-Coated Black
Bob’s Kick-Back Plate 6" Action Series Hydraulic Kick-Back Jac – Powder-Coated Black is designed to deliver reliable hydraulic performance with enhanced shallow water protection. Built for durability and smooth operation, this jack plate helps improve boat handling while reducing the risk of lower unit damage when navigating changing water conditions.
Its patented Kick-Back design allows the motor to react when encountering submerged obstacles, helping protect vital components while maintaining control. The powder-coated black finish adds corrosion resistance and a clean, professional appearance suited for marine environments.
Key Features:
- Patented Hydraulic Kick-Back Jac design
- Action Series construction for dependable performance
- Powder-coated black finish for corrosion resistance
- No chains or springs required for operation
- Built-in Kick-Back protection for submerged impact situations
- Designed for smooth hydraulic motor adjustment
Specifications:
- Setback: 6"
- Hydraulic stroke: 6"
- Built-in structure lift: 1.5"
- Total lift: 7.5"
- Tilt: 30°
- Motor compatibility: Up to 150 HP
- Bolt pattern: BIA
- Weight: 48 lbs
- Pivot points: Greaseable with automotive zerk fittings
- Bearing system: Delrin bushings, rollers, and bearings
- Safety: Motor tether attachment point included
- Locking system: Pins for reverse and trailering
- Warranty: Limited lifetime structure warranty + 3-year Action Pump warranty
