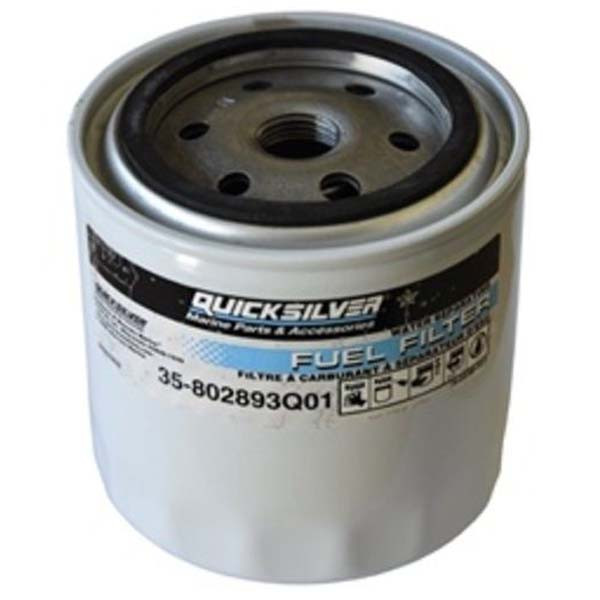

Quicksilver 35-802893Q01 Water Separating Fuel Filter - MW

Quicksilver 35-802893Q01 Water Separating Fuel Filter

This 25 micron Mercury filter separates water and other impurities from the fuel to increase engine performance. Fuel contamination can result in poor engine performance, stalling, and damage to fuel system components. The filters metal shell features a durable paint finish to resist corrosion in fresh and saltwater marine environments. The filters internal surfaces are coated in an epoxy finish to resist rust and provide a long working life.

It is recommended to change your fuel filter after every 100 hours of use or at least once per season.

Application Information:

This fuel filter is designed for use with:

Mercury, Mariner and Force outboards equipped with  externally mounted water separating fuel filter bases.

Mercury MerCruiser applications except 1992 4.3L Gen II engines with an in-line fuel filter and 2004 -2010 MPI engines with Gen 3 fuel cool module

Yamaha, Suzuki, SMI, Volvo, Penta

Replaces:

• Sierra
• 18-7844
• 18-7944
• Aqua Power 6042
• Racor S3220UL

Quicksilver Fuel Filter Installation Instructions

1. Unscrew the old filter and clean mounting base. Make sure the old gasket is also removed
2. Apply a thin coat of engine oil to filter gasket and make sure the gasket is seated properly in the base of filter
3. To prevent air from entering the fuel system, fill the filter with fuel
4. Screw on until the gasket contacts the base and tighten 2/3 to 1 full turn
5. Run engine and check for leaks

Quicksilver 35-802893Q01 Water Separating Fuel Filter FAQs

What does the Quicksilver 35-802893Q01 fuel filter do?

The Quicksilver 35-802893Q01 Water Separating Fuel Filter separates water and other impurities from fuel to help protect fuel system components and support engine performance.

What is the micron rating of the Quicksilver 35-802893Q01 fuel filter?

The Quicksilver 35-802893Q01 is a 25-micron water separating fuel filter.

What applications is this Quicksilver fuel filter designed for?

This fuel filter is designed for Mercury, Mariner, and Force outboards equipped with externally mounted water separating fuel filter bases, most Mercury MerCruiser applications, and select Yamaha, Suzuki, SMI, Volvo, and Penta applications.

Are there any MerCruiser applications this filter does not fit?

Yes, this filter does not fit 1992 4.3L Gen II engines with an in-line fuel filter or 2004-2010 MPI engines with a Gen 3 fuel cool module.

How often should I replace the Quicksilver 35-802893Q01 fuel filter?

Replace the Quicksilver 35-802893Q01 fuel filter after every 100 hours of use or at least once per season.

What part numbers replace or interchange with Quicksilver 35-802893Q01?

The Quicksilver 35-802893Q01 fuel filter is replaced by or interchanges with Sierra 18-7844, Sierra 18-7944, Aqua Power 6042, and Racor S3220UL.

How do I install the Quicksilver 35-802893Q01 fuel filter?

Unscrew the old filter, clean the mounting base, remove the old gasket, apply a thin coat of engine oil to the new gasket, fill the filter with fuel, screw it on until the gasket contacts the base, tighten 2/3 to 1 full turn, then run the engine and check for leaks.
