Mercury Bravo 3 15.5x 24P LH Front Propeller 48-8M8022429 - MW

Name: Mercury Bravo 3 15.5x 24P LH Front Propeller 48-8M8022429 - MW
Brand: Mercury - Mercruiser (MW)
SKU: 48-8M8022429
Availability: InStock

SKU 48-8M8022429 MPN 8M8022429 UPC 745061817715 MFR Mercury - Mercruiser (MW)

Express

Toronto, ON Vancouver, BC NJ, Warehouse FL, Warehouse

"Express" items are automated and typically shipped out the next available business day and delivered within 4 days.

In Stock

Purchasing Code Required

To order this product online, please contact us with the quantity you need and your ZIP / postal code to receive your purchasing code. Some locations are restricted at this time.

Request Purchasing Code

Already have a code? Enter it below to unlock pricing and purchasing.

Ask a question about this product

Back to: Mercury Outboard Parts

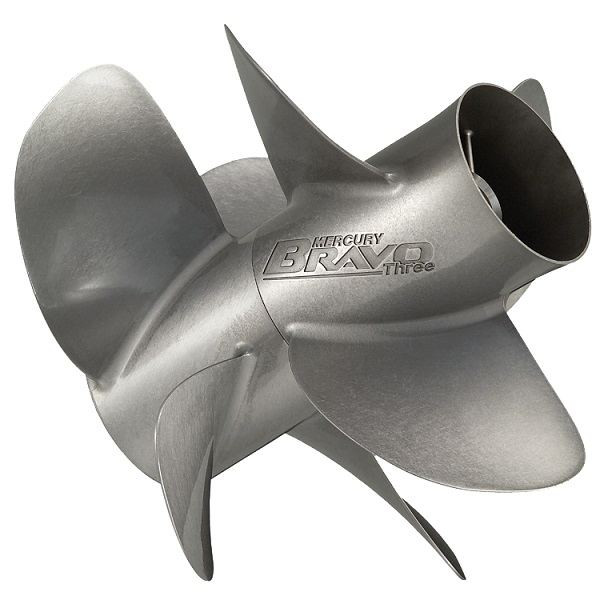

Mercury Bravo 3 15.5x 24P LH Front Propeller 48-8M8022429

NLA - Superseded to 8M8022420

The Mercury Bravo 3 features an amazing twin prop drive system for unbelievable handling and boat control. Perfect for Catamarans, Cruisers, Deckboats, Houseboats, and more. These high quality USA made props feature advanced engineering that are created and completed in Fond Du Lac, Wisconsin. Using a proprietary blend of stainless steel Mercury balances strength and corrosion resistance, making this prop perfect for both fresh and saltwater applications. Designed using a front 4 blade propeller with a 3 blade rear propeller to offer enhanced holding power with great acceleration.

Product Features:

Construction

Proprietary blend of 15-5 stainless steel balances strength and corrosion resistance.

Production

Created and completed by Mercury engineers and employees in Fond du Lac, Wisconsin, USA.

Performance

High quality stainless steel is molded into durable propellers that will give you a true competitive advantage

The Mercury Bravo 3 Propeller is a coupled twin propeller for unbelievable performance. Fits all Bravo Three drives

Specifications:

Diameter: 15.5
Pitch: 24
Rotation: Left Hand Counter

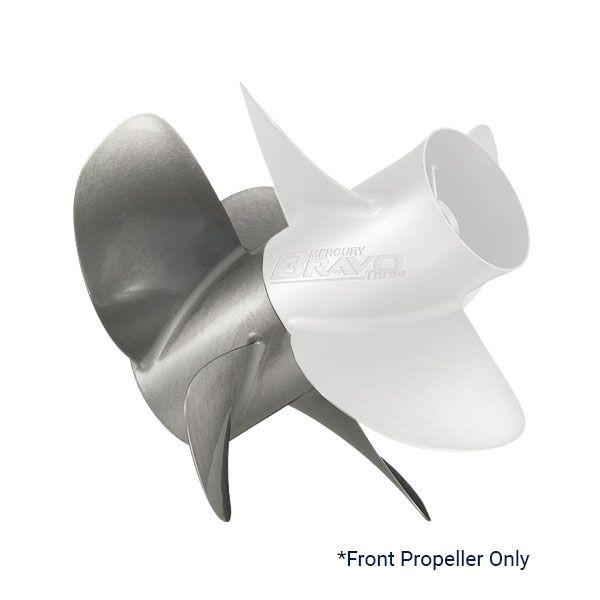

Position: Front
Number of Blades: 4
Performance Vent System (PVS): No
Material: Stainless Steel
Hub: Flo Torq SSR

Use with:

805100 Aft Thrust Washer
805101T Forward Thrust Washer
862907 Aft Prop Nut
8M0105210 Forward Prop Nut

Bravo Three Propeller Installation

Apply an ample amount of the lubricants to the inner and outer propeller shafts
Slide the forward thrust hub onto the outer propeller shaft with the tapered hub end facing aft
Align the splines of the propeller with the shaft splines and slide the propeller into place on the outer shaft
Secure with the forward propeller nut and tighten to the specified torque
Slide the aft thrust hub onto the inner propeller shaft with the tapered hub end facing aft
Align the splines of the propeller with the shaft splines ans slide the propeller into place on the inner shaft
Secure the aft propeller nut and tighten to the specified torque

Click here for the Bravo Three Propeller Installation Manual
