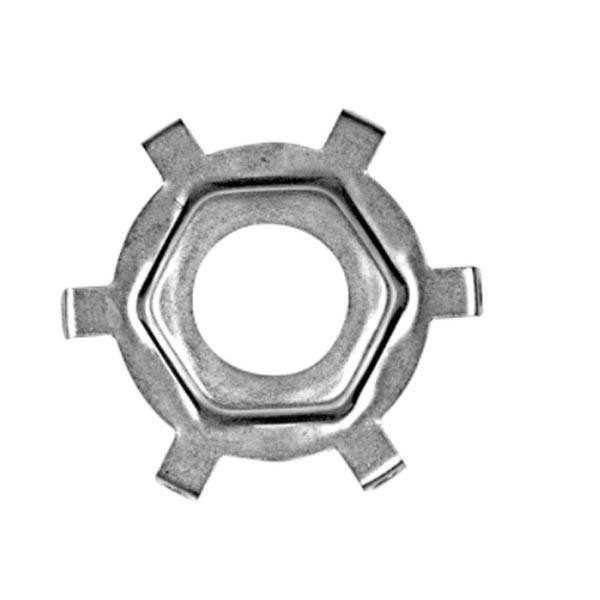

Quicksilver 14-816629Q Mercury MerCruiser Propeller Tab Washer

The Quicksilver 14-816629Q Propeller Tab Washer is designed for select Mercury and Mariner outboards, as well as MerCruiser Alpha One and Bravo One sterndrives using a bronze drive sleeve adapter. This tab washer installs on the prop shaft ahead of the propeller nut to help secure the propeller assembly.

After the propeller nut is tightened to the correct specification, the locking tabs are pressed down to help keep the nut in place. Do not operate your engine or drive without the propeller nut properly installed and secured with the correct tab washer.

Product Features:

Genuine Quicksilver propeller tab washer
Installs on the prop shaft ahead of the propeller nut
Helps secure the propeller nut and propeller assembly
Locking tabs are designed to be pressed down after the prop nut is tightened
For select Mercury, Mariner, and MerCruiser propeller applications
Designed for Alpha One and Bravo One sterndrives using a bronze drive sleeve adapter

Product Details:

Brand: Quicksilver
Manufacturer Part Number: 14-816629Q
Part Type: Propeller Tab Washer
Application: Select Mercury/Mariner outboards and MerCruiser sterndrives

Fits:

Mercury and Mariner 40-60 HP BigFoot 4-stroke outboards
Mercury and Mariner 75-300 HP 2-stroke outboards
Mercury and Mariner 75-300 HP 4-stroke outboards
MerCruiser Alpha One sterndrives using a bronze drive sleeve adapter
MerCruiser Bravo One sterndrives using a bronze drive sleeve adapter

Installation Note: Refer to your owner’s manual for the correct Flo-Torq hub, thrust washer, propeller nut, and tab washer for your engine or drive. To help with future propeller removal, apply Mercury 2-4-C or Mercury Special Lube 101 to the prop shaft splines as directed by the manufacturer.

Fitment Note: Propeller hardware should be verified by engine or drive model, horsepower, prop shaft size, hub system, drive sleeve adapter, and existing propeller hardware before ordering.
