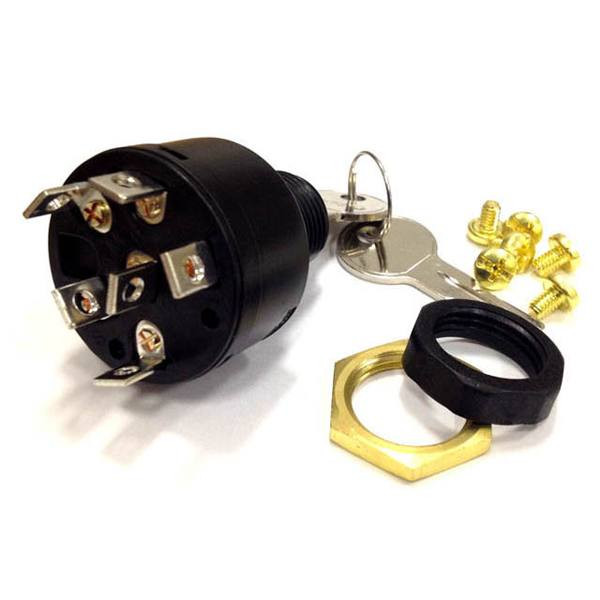

Sierra MP41000 Ignition Switch - 3 Position Magneto
Sierra Marine's replacement engine components are manufactured to meet or exceed OEM requirements. This ignition switch provides maximum corrosion protection and features a non-conductive housing that eliminates potential shorts. It also features an inner seal between the cylinder lock and contact plate.
Specifications:
- Push to choke
- Back up nut: Brass
- Face nut: Hex black plastic
- Hole Size: 7/8"
- Length: Short 5/8" maximum panel thickness
- Material: Marine-grade glass-filled polyester
- Rated Choke: 7 Amp @ 12 VDC
- Rated Ignition: 15 Amp @ 12 VDC
- Rated Solenoid: 30 Amp @ 12 VDC
- Terminal Type: 6 Screw tab
- Switch Positions: Off - Run - Start
Interchangeable with:
- Mercury Marine
- 87-17393
- 87-88107
- 87-88107A5
- Mercury Sport Jet
- 87-88107
- 87-88107A5
- Seadog
- 420381-1
