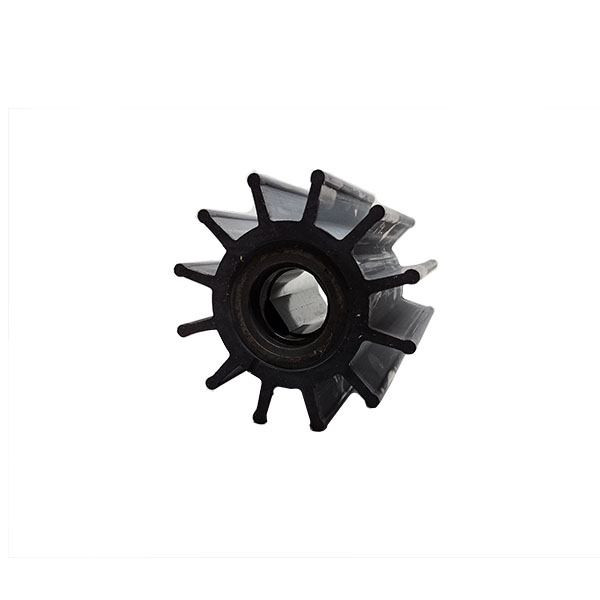

Jabsco 17370-0001-P Impeller replaces Cummins 3008503
This Jabsco impeller is constructed from durable neoprene for a long working life. This water pump impeller comes with lubricant, a gasket and instructions for easy installation.
Replaces:
- DDA
- 8927570
- Cummins
- 3008503
- CAT
- 3N-4859
Specifications:
- Diameter: 3-3/4"
- Width: 3-1/2"
- Shaft Diameter: 1"
- Drive Type: Double Flat
- Material: Neoprene
- Blades: 12
Jabsco 17370-0001-P Impeller Installation Instructions
- Remove screws, endcover, and gasket
- Remove old impeller using Jabsco removal tool
- Remove any debris from pump chamber
- Lubricate inside pump wall and grease
- Insert replacement impeller into impeller bore with a twisting motion
- Fit replacement gasket and endcover
- Tighten endcover
