Faria 33742 Chesapeake Black 4K Diesel Tach - Mech Takeoff - MW

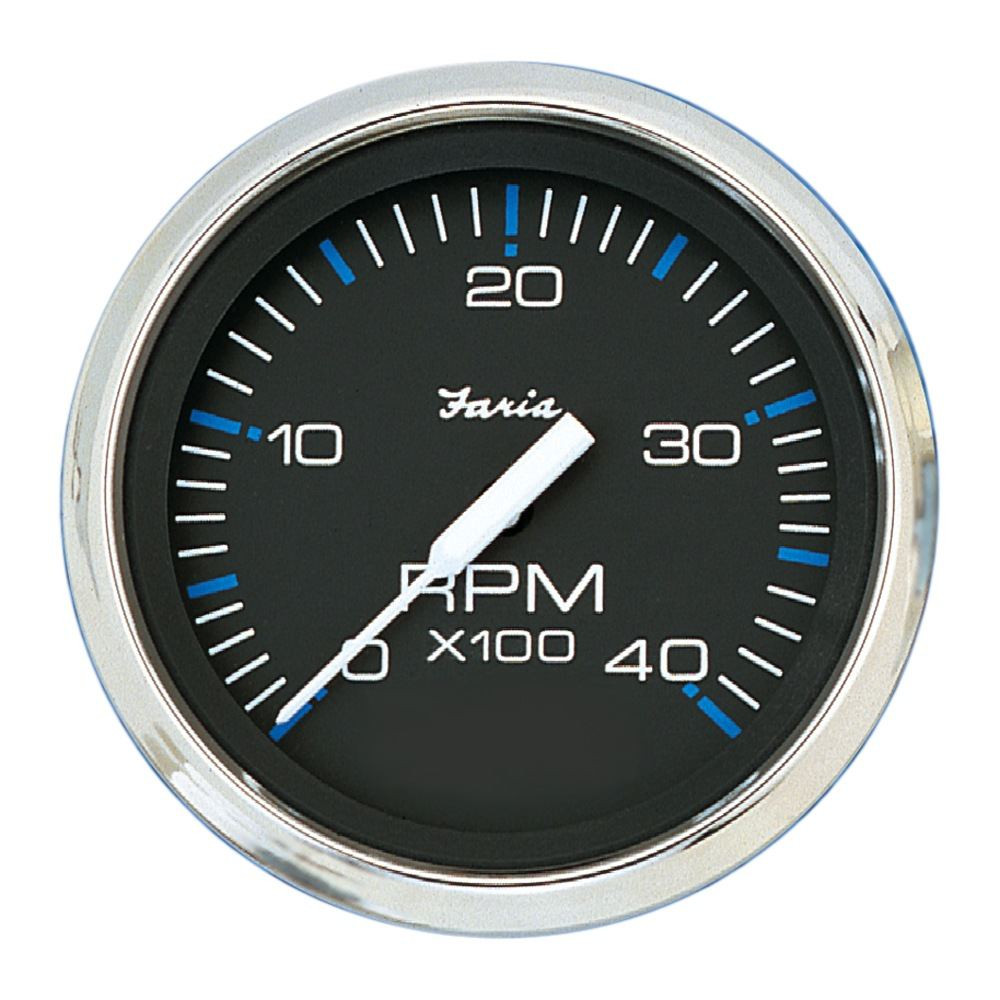

Chesapeake Black 4" Tachometer - 4000 RPM (Diesel) (Mechanical Takeoff & Var Ratio Alt)
Perimeter-lighted Black dial with stylish Blue and White graphics, polished stainless steel bezel, contoured white pointer and domed glass lens.
Electronic tachometers work by counting pulses generated by the ignition system, alternator, tach signal generator or magnetic pickup sender. The tach is hooked up to +12VDC, Ground and one of the signal sources listed above.
By selecting the right tach and setting the switch on the back to the correct position you let the tachometer know how many pulses are sent per each engine revolution.
4" - Hole size: 3.375" (85mm)
Specifications:
- Anti-scratch glass lens
- Perimeter lighted back light
- 12 VDC negative ground
- Can be adapted for 24 VDC systems
Factory P/N TD9127
*Sold as an Individual
**Gauge Cover not Included
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Specifications:
- Gauge Type: Tachometer - Diesel
- Box Set: No
- Series: Chesapeake Black
- Voltage - Input Range (Volts): 12/24 V
- Gauge Size: 4"
- Box Dimensions: 5"H x 6"W x 6"L WT: 0.7 lbs
- UPC: 759266337428
