Steering Kit Back Mount Rack Nfb Dual 13 - (MW)

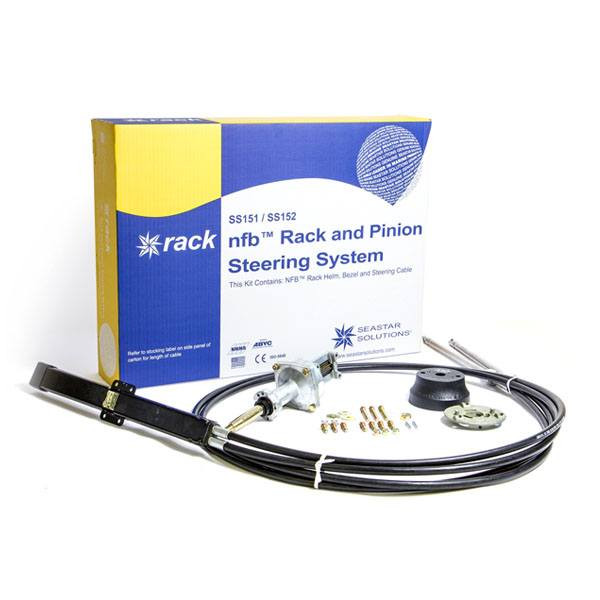

NFB Pro Rack Outboard Dual Cable Steering System

Supersedes: TEL-SS14816

Owners of high-speed and racing boats need a reliable outboard dual cable steering system to achieve optimal performance. For the high-performance boater, we recommend the Teleflex dual steering system. The No FeedBack technology combines precision with the control associated with a dual cable rack and pinion system. The Pro Rack is designed for high performance hulls and motors. These boats are normally engine flutter-prone, experience instability, or just require an extra margin of control at the helm. This dual steering system is designed as a drop-in replacement for Teleflex's "The Rack".

Applications:

The Teleflex dual steering systems are suitable for single-station, high performance boats with single, non-power-assisted outboards (up to V-6). Use NFB Rack with up to 16” steering wheels.

Features:

• Patented No FeedBack™ Steering mechanism.
• Dual Cables minimize lost motion in system.
• Precise feel of 4 turns from lock-to-lock.
• Minimal clutch free play.
• Standard 3/4” round tapered steering shaft.
• Stainless steel cable output ends.
• Fast, easy installation; back mount design allows quick placement in dash PLUS mounting hardware fits industry-standard Teleflex and Morse rack holes.
• Kits include: cable, helm, 90° bezel and hardware.
• Meets A.B.Y.C. standards.
• Meets N.M.M.A. certification requirements

Note: Product images include both old and new packaging

How to Measure Steering Cables:

Replacement of Existing Cable: If possible, find the part number stamped on the plastic jacket of the old cable. If you removed the old cable, measure for the replacement cable as follows:

For Rack Steering Cable Replacement, Measure Existing Cable as follows: Measure plastic cable jacket (“Y” dimension shown in above drawing) in inches, add 30″, and round up to next foot. Order that length cable.

New Installation: Measure cable routing path from wheel center line to engine connection, as follows:

• A = Center line of wheel to gunwale (or deck, if routed downward)
• B = Dash to transom
• C = Gunwale to centerline of cable connection at centered tiller.

For Cable Installations through the Engine Tilt Tube: Add A, B & C + 6″, then round up to the next foot. Order that length cable.

For Cables Mounted to Transom, Splashwell or Stringer: Add A, B & C, then subtract 6″ and round up to the next foot. Order that length cable.

TYPICAL SINGLE STATION ROUTING

A single-cable, starboard drive push-pull mechanical cable system is shown in this diagram. If your mechanical system is different than the one depicted and/or you have any questions about mechanical steering after reviewing this guide, please contact Teleflex (Mechanical) Technical Service at (610)-495-7011 or www.teleflexmarine.com

Cable routings (such as those found on pontoon boats) may vary from this drawing. Confirm length by laying a garden hose or similar object) along cable path and measure run from wheel to engine connection point.
