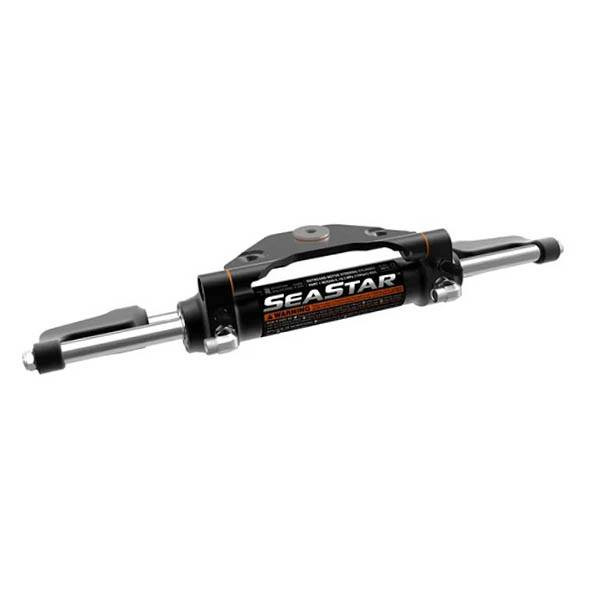

SeaStar HC5345-3 Outboard Steering Cylinder
This SeaStar HC5345-3 outboard hydraulic cylinder features an upgrade to the barrel, sealing system and fittings. The robust barrel and new graphics complement the styling on new boats and motors. The new sealing system offers excellent resistance to repeated compression set and is designed to better withstand the harsh environment.
Features:
- Independent engine tilt for twin/triple engine installations
- Easy steering
- Suitable for use with all SeaStar Helms & SeaStar Power Assist
- Varying lock to lock turn ratio, dependent on helm selection
- State of the art proprietary sealing system offers excellent resistance to repeated compression set
- Stainless steel adjustable O-Ring (ORB) fitting for easier installation
Specifications:
- Shaft Dia: .75"
- Stroke: 8"
- Seal Kit: HS5157
- Volume Cu.: 8.34"
----------------------------------------------------------------------------------------------------------------------
Single Engine Application:
- Honda
- 1996-Present, 75-90 HP
- 1998-Present, 30-50 HP
- 2003-Present, BF135 HP
- 2010-Present, 115HP
- 2015-Present, BF100 HP
- Johnson/Evinrude
- 1991-Present, 40-300 HP
- 1997-2006, 75-300 HP Ficht
- 2002-Present, 200-225 HP 4-Stroke
- 2007-Present, 3.3L V6 200-250 HP
- OXE
- 2017-Present, 200 HP Diesel I4 2.4L
- Selva
- 2014-Present, 115 HP
- 2000-Present, 150 HP
- 2007-Present, 200-300 HP 4.2L V6
- Suzuki
- 1986-2000, DT-100 HP
- 1986-2002, 115-140 HP
- 1986-2013, 150-225 HP 2 & 4-Stroke
- 2004-Present, DF200-300 HP 3.6-4.0L V6
- 2017-Present, DF325-350 HP 4.4L V6
- Tohatsu
- 1990-Present, 40-140 HP
- 2014-Present, BFT60-BFT150
- 2014-Present, BFT200-BFT250
- Yamaha
- 1990-2003, 40-90 HP 2-Stroke
- 1986-Present, 100-300 HP 2-Stroke
- 1997-Present, 80-250 HP 4-Stroke
- 2000-Present, 150-300 HPDI
- 2007-Present, 200-300 HP 4.2L V6 4-Stroke
- 2007-Present, F300-F350 HP 5.3V8
- 2012-Present, 150-200 HP 2.8L 4 Cyl.
- 2014-Present, F115B
