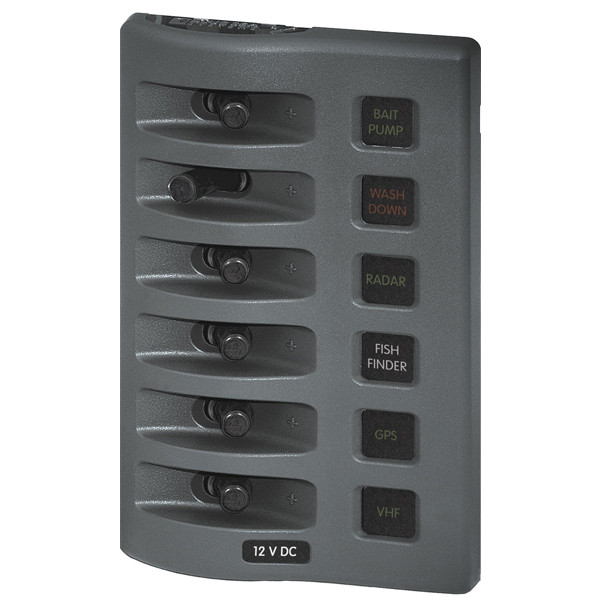

Blue Sea WeatherDeck Waterproof Fuse Panel - 6 Switch
The Blue Sea WeatherDeck Waterproof Fuse Panel is designed for flybridge and open cockpit applications. This fuse panel is rated IP67 - temporary immersion for 30 minutes. This panel can be mounted in four different orientations.
Features:
- Waterproof
- Independent label backlighting circuit for remote switching and dimming
- Integrated ATO/ATC fuse based circuit protection
- Bicolored LEDs illuminate circuit labels to quickly identify OFF (Red), ON (Green), or Blown (No Color) circuits. No lights in any position likely indicate there is no power to the panel.
Specifications:
- Positions: 6
- Nominal Voltage: 12V DC
- Circuit Protection: Fuse
- Maximum Amperage: 15A @ 12V DC (per circuit)
- Panel Cumulative Rating: 90A
- Backlit Label: Bicolored LED
- Backlighting Amperage: 10mA / Illuminated Circuit
- Backlighting Voltage: 12V DC
Dimensions: 6" Height x 3.88" Width x 2.50" Depth
Click to Download Blue Sea 4306 Fuse Panel Installation Instructions
Click to Download Blue Sea 4306 Fuse Panel Cutout Template
