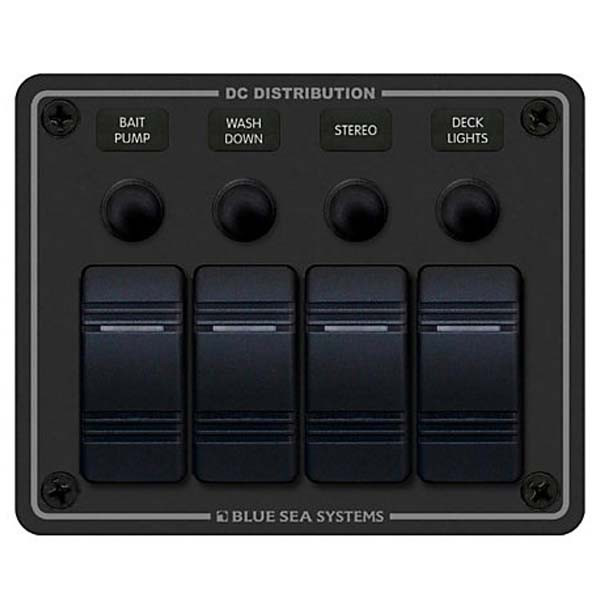

Blue Sea Water Resistant Circuit Breaker Panel - 4 Position

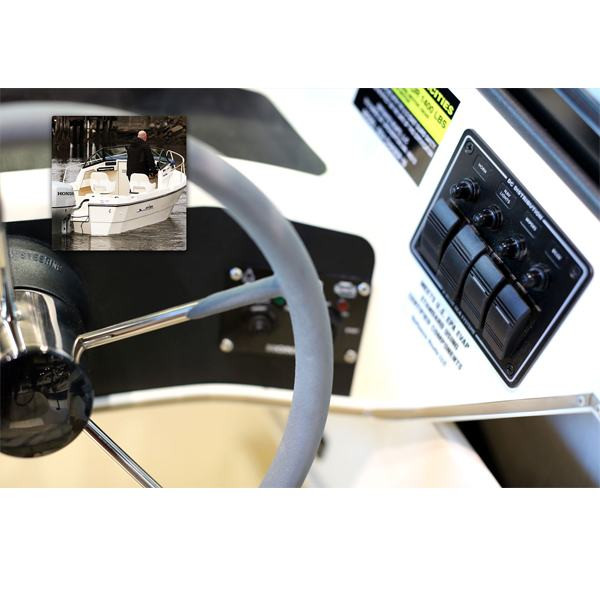

This Blue Sea Circuit Breaker Panel is designed for flybridge and open cockpit applications. Panel will withstand the water exposures normally encountered in above deck applications such as salt spray, rain, hose washdowns, momentary immersions.
Features:
- Panel front is rated IP66-protected against powerful water jets
- Ignition protected - safe for installation aboard gasoline powered boats
- ON-OFF Contura switches
- ON indicating LEDs embedded in switch
- Watertight mounting gasket
- Push Button Reset - only circuits breakers with waterproof boots
Specifications:
- Positions: 4
- Nominal Voltage: 12V DC | 24V DC
- Panel Cumulative Rating: 45A
- Switch Rating: 20A @ 12V DC | 15A @ 24V DC
Dimensions: 4.25" Height x 5.25" Width x 3.25"
Click to Download Blue Sea 8372 Circuit Breaker Panel Instructions
Click to Download Blue Sea 8372 Circuit Breaker Cutout Templates
