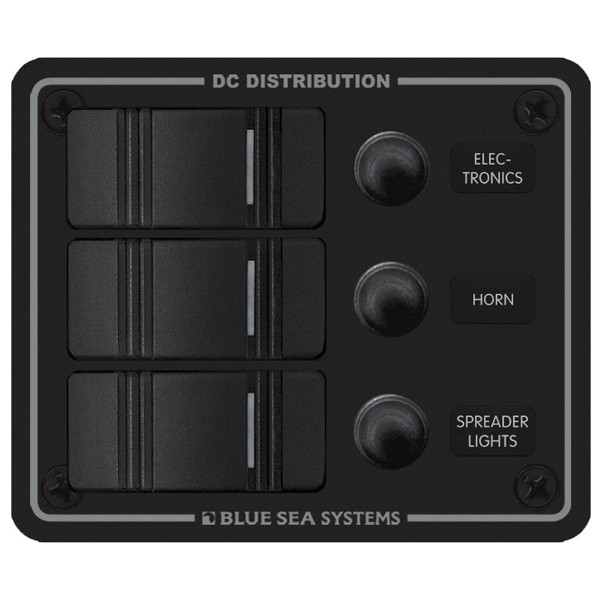

Blue Sea 8374 Water Resistant Circuit Breaker Panel - 3 Position

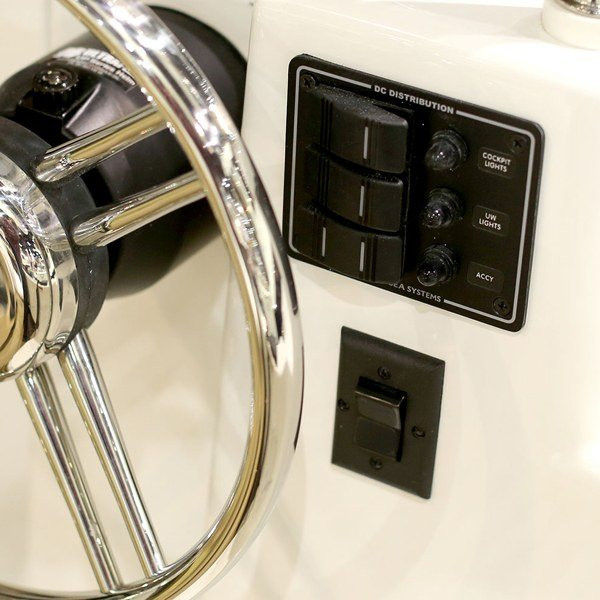

The Blue Sea 8374 Circuit Breaker Panel is designed for flybridge and open cockpit applications. The panel front is rated IP66 and is protected against powerful water jets. This circuit breaker panel is ignition protected, so it is safe for installation aboard gasoline powered boats.
Features:
- ON-OFF Contura Switches
- ON indicating LEDs embedded in switch
- Watertight mounting gasket
- Push Button Reset - only circuit breakers with waterproof boots
Specifications:
- Positions: 3
- Nominal Voltage: 12V DC | 24V DC
- Panel Cumulative Rating: 45A
- Switch Rating: 20A @ 12V DC | 15A @ 24V DC
Dimensions: 3.75" Height x 4.50" Width x 3.25" Depth
Click to Download Blue Sea 8374 Circuit Breaker Panel Instructions
Click to Download Blue Sea 8374 Circuit Breaker Panel Cutout Template
