Blue Sea Switch Panel - 6-Position - MW
This item is currently on backorder. You can still place an order, but it will only ship once it’s back in stock.

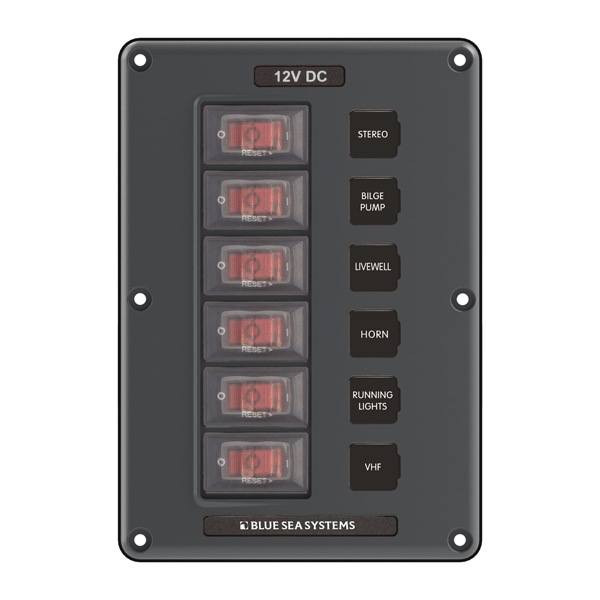

Blue Sea Switch Panel - 6-Position
This Blue Sea Switch Panel - 6-Position features a polycarbonate/ABS panel surface, making this switch panel flame retardant, UV-stabilized and corrosion resistant. It's fast-on circuit breaker connectors make it quick to wire while the silicon breaker boots and gasket protect against water ingress. The illuminated 15A circuit breakers provide switching, "ON" indication, and overcurrent protection.
Features:
- Silicon Breaker Boots and Gasket Protects Against Water Ingress
- Designed For Exposed Mounting Applications
- Polycarbonate/ABS Panel Surface Is UV-Stabilized, Flame Retardant, and Corrosion Resistant
- Terminals Screw To Bus Bars For Secure Connections
- Illuminated 15A Circuit Breakers Provide Switching, "ON" Indication and Overcurrent Protection
- Fast-On Circuit Breaker Connectors Make It Quick To Wire
- Low Profile Makes For Easy Installation In Tight Spaces
- Two-Wire Connection For Powering All Panels Requires #10 Ring Terminals
- Industry-Standard Sizes and Mounting Allow These Panels To Be Easily Retrofitted In An Existing Application
- Includes Easy To Replace Set Of 15 Square Format Circuit Labels
Specifications:
- Height: 6.625 in (168.28 mm)
- Depth: 1.75 in (44.45 mm)
- Width: 4.625 in (117.48 mm)
- Maximum Amperage: 45A
- Nominal Voltage: 12V DC
- Hardware: Stainless Steel #6 x 5/8" Mounting Screws
- Terminal Type: 1/4" Male Quick Connect
- Positions: 6
- Color: Gray
- Ring Terminal Size: M5 (#10)
