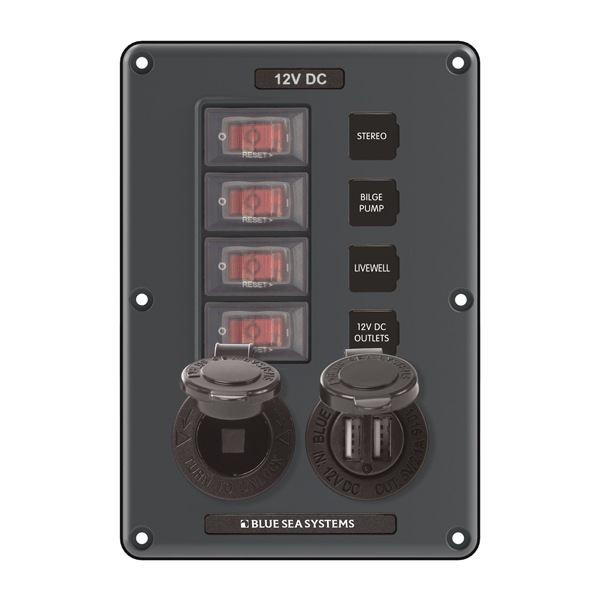

Blue Sea Switch Panel - 4-Position w/ Socket & USB
This Blue Sea Switch Panel - 4-Position w/ Socket & USB features industry-standard sizes and mounting that allows the panels to be easily retrofitted in an existing application. It also features a 12-volt dual socket and USB charger. The silicon breaker boots and gasket protect against water ingress. With a polycarbonate/ABS panel surface, this switch panel is flame-retardant, UV-stabilized, and corrosion resistant.
Features:
- Polycarbonate/ABS Panel Surface Is UV Stabilized, Flame Retardant, and Corrosion Resistant
- 12-Volt Dual Socket
- USB Charger
- Low Profile Makes For Easy Installation In Tight Spaces
- Industry-Standard Sizes and Mounting Allow These Panels To Be Easily Retrofitted In An Existing Application
- Silicon Breaker Boots and Gasket Protects Against Water Ingress
- Designed For Exposed Mounting Applications
- Two-Wire Connection For Powering All Panels Requires #10 Ring Terminals
- Terminals Screw To Bus Bars For Secure Connections
- Illuminated 15A Circuit Breakers Provide Switching, "ON" Indication and Overcurrent Protection
- Includes An Easy To Replace Set Of 15 Square Format Circuit Labels
- Fast-On Circuit Breaker Connectors Make It Quick To Wire
Specifications:
- Depth: 1.75 in (44.45 mm)
- Height: 6.625 in (168.28 mm)
- Width: 4.625 in (117.48 mm)
- Positions: 4
- Maximum Amperage: 45A
- Color: Gray
- Nominal Voltage: 12V DC
- Terminal Type: 1/4" Male Quick Connect
- Hardware: Stainless Steel #6 x 5/8 Mounting Screws
- Ring Terminal Size: M5 (#10)
