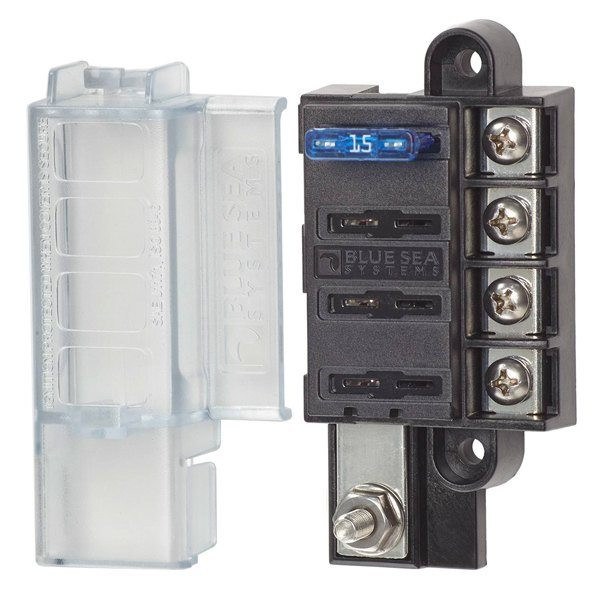

Blue Sea Systems ST Blade Compact 4 Circuit Fuse Block
Blue Sea Systems' Compact Fuse Blocks provide surface mount circuit protection for ATO/ATC fuses in a compact footprint. Includes a cover and four write-on circuit labels. The insulating cover meets ABYC/USCG insulation requirements.
- Ignition protected when cover is secure - meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
- Single side design allows wire entry from one side to minimize footprint
- Tin-plated copper buses and fuse clips
- Accepts ring or snap fork type terminals
- Includes 4 write-on circuit labels
- Fuses sold seperately

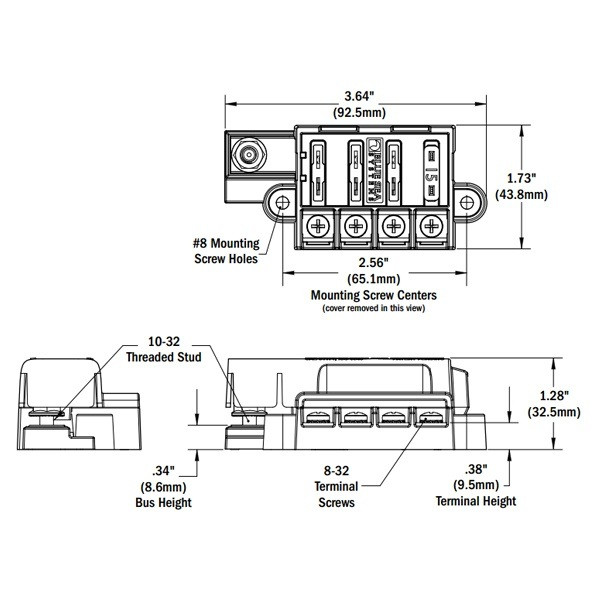

Specifications:
Circuits: 4
Maximum Amperage: 100A per block | 30A per circuit
Maximum Voltage: 32V DC
Mounting: #8 Screw (M4)
Screw Terminal Type: #8-32 Screws with captive star lock washer
Terminal Stud Size: #10-32
