Blue Sea 6 Circuit ST Blade Fuse Block w/ Negative Bus - MW
Express
Toronto, ON
Vancouver, BC
NJ, Warehouse
FL, Warehouse
"Express" items are automated and typically shipped out the next available business day and delivered within 4 days.
In Stock
14 available
$57.49

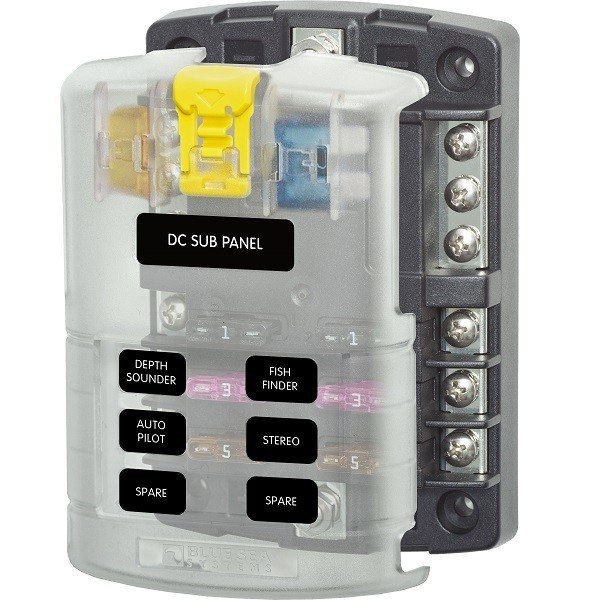

Blue Sea ST Blade Fuse Block w/ Negative Bus and Cover-6 Circuit
This Blue Sea Fuse Block consolidates branch circuits and in-line fuses. The Blue Sea ST Blade Fuse Block offers a space saving and cost effective solution to adding circuit protection when there are limited available circuit breakers on the distribution panel. Includes a cover that satisfies ABYC/USCG requirements for insulation. Cover features an easy to open push button latch, storage for two spare fuses, and label recesses that accept Blue Sea Systems "small format labels" for circuit identification.
Features:
- Can be used for 24-hour circuits
- Includes 20 write-on circuit labels
- Tin-plated copper buses and fuse clips
- Accepts ring or spade type terminals
- Accepts ATO® and ATC® fast acting blade fuses
- Fuses sold separately
Specifications:
- Circuits: 6
- Maximum Amperage: 100A per block | 30A per circuit
- Maximum Voltage: 32V DC

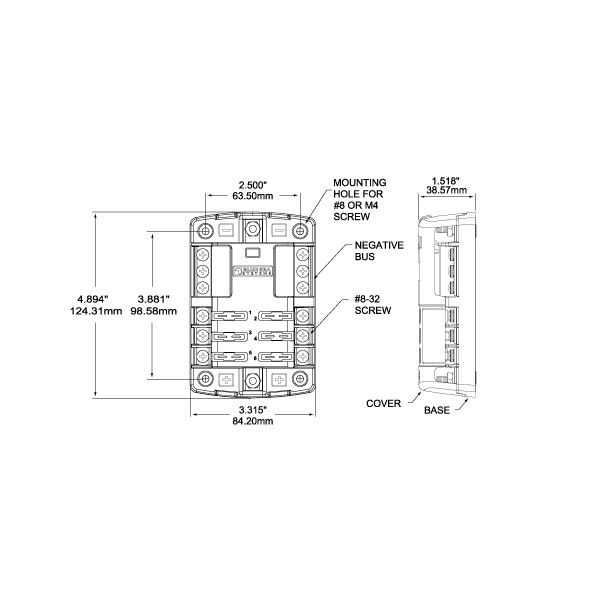

- Mounting: #8 Screw (M4)
- Negative Bus: #10-32 Stud
- Positive Bus: #10-32 Stud
- Recommended Torque: 24 in-lb
- Screw Terminal Type: #8-32 Screws with captive star lock washer
- Screw Terminal Torque: 15 in-lb
- Weight: 0.55lb
Click to Download Blue Sea 5025 ST Blade Fuse Block Wiring Instructions
