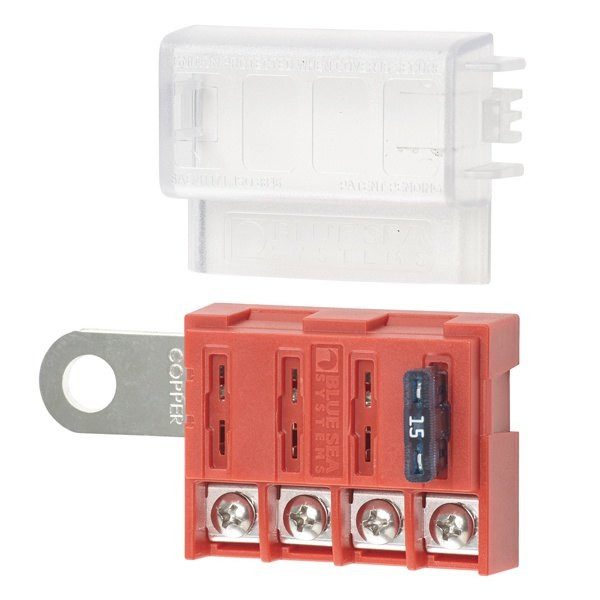

Blue Sea Systems ST Blade Battery Terminal Mount Fuse Block
The Blue Sea ST Blade Battery Fuse Block mounts on the battery terminal stud and includes an insulating cover.
Features:
- Easy to install (4) ATO/ATC fused circuits
- Screw terminals for securing wires
- Four nylon insulated ring terminals included
- Insulating cover included
- Accepts small format circuit labels
- Includes (1) fuse

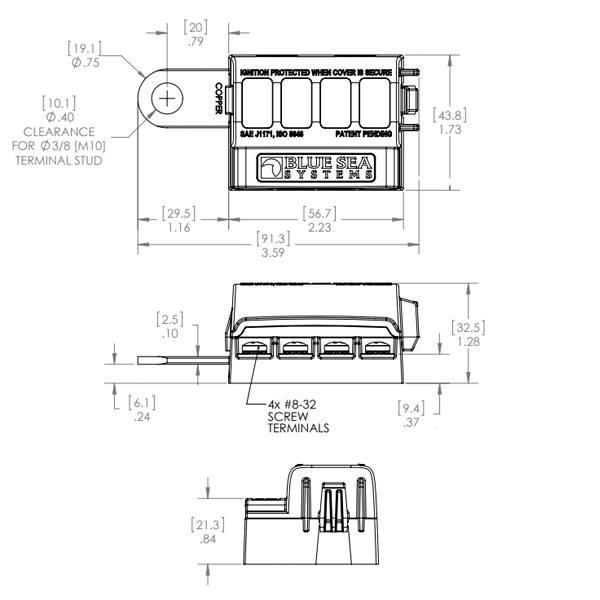

Specifications:
- Circuits: 4
- Maximum Amperage: 100A per block | 30A per circuit
- Maximum Voltage: 32V DC
- Mounting: Clearance for 3/8" stud
- Screw Terminal Type: #8-32 screws with captive star lock washer
- Screw Terminal Torque: 15 in-lb
- Weight: 0.25 lb
