Blue Sea 12 Circuit ST Blade Split Bus Fuse Block

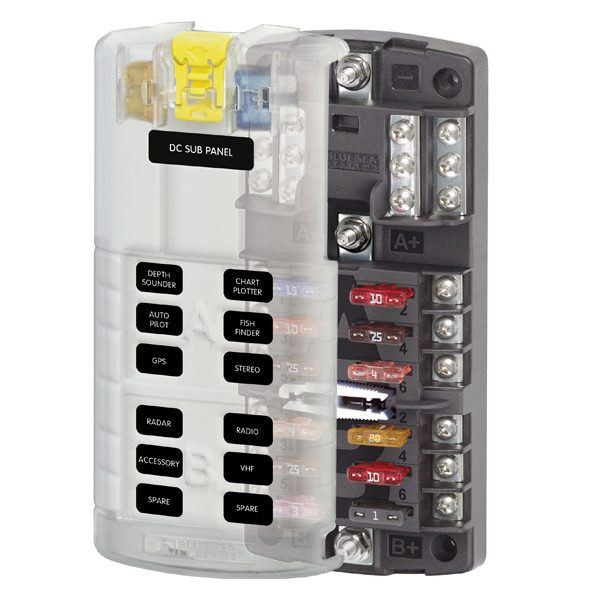

The Blue Sea ST Blade Split Bus Fuse Block is a great option when a mix of switched and 24-hour circuits are desired in the same block. This split bus block provides two isolated groups of six ATO/ATC circuits. Use this fuse block with either two isolated batteries or with a single battery providing a mix of 24 hour and switched circuits. Fuse box includes a clear insulating cover with label recesses and storage for two fuses.
Features:
- Provides two isolated groups of six ATO/ATC circuits
- Screw terminals for securing wires accept ring terminals
- One-piece stainless flange nuts ensure safe and secure connections
- Clear insulating cover satisfies ABYC/USCG insulation requirements
- Easy to open, push button latch for easy access to fuses
- Tin-plated copper buses and fuse clips
- Fuses sold separately

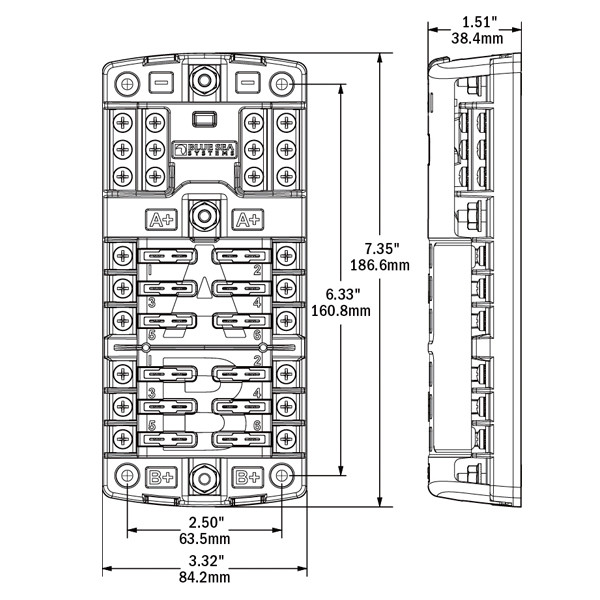

Specifications:
- Circuits: 12
- Maximum Amperage: 30A per circuit, 100A total
- Maximum Voltage: 32V DC
- Mounting: #8 Screw (M4)
- Negative Bus: #10-32 Stud
- Positive Bus: #10-32 Stud
- Recommended Torque: 24 in-lb
- Screw Terminal Torque: 18 in0lb
- Screw Terminal Type: #8-32 screws with captive star lock washer
- Weight: .75 lb.
