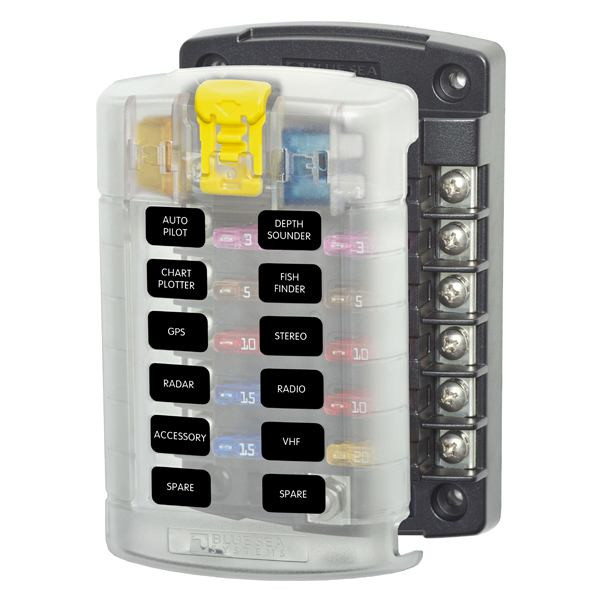

Blue Sea ST Blade Fuse Block w/ Cover - 12 Circuit
The Blue Sea ST Blade Fuse Block consolidates branch circuits and in-line fuses. This fuse block can be used with 24-hour circuits and has a positive distribution bus with #10-32 stud. Includes a cover, which satisfies ABYC/USCG requirements for insulation. The cover incorporates an easy to open push button latch, which provides easy access to fuses. Cover includes storage for two spare fuses, and label recesses that accept Blue Sea Systems' small format labels for circuit identification.
- Positive distribution bus with #10-32 stud
- Can be used for 24-hour circuits
- Tin-plated copper buses and fuse clips
- Accepts ring or snap fork type terminals
- Accepts ATO® and ATC® fast acting blade fuses
- Fuses sold separately
Specifications:
- Circuits: 12
- Maximum Amperage: 100A per block | 30A per circuit
- Maximum Voltage: 32V DC

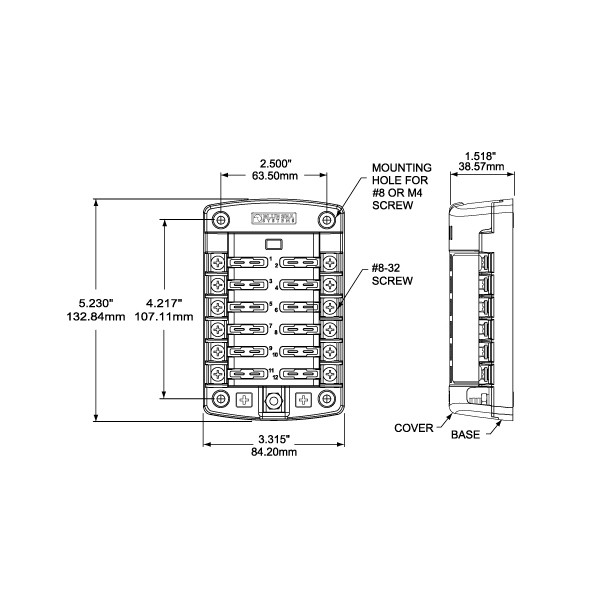

- Mounting: #8 Screw (M4)
- Positive Bus: #10-32 Stud
- Recommended Torque: 24 in-lb
- Screw Terminal Type: #8-32 Screws with captive star lock washer
- Screw Terminal Torque: 15 in-lb
- Weight: 0.68lb
Click to Download Blue Sea ST Blade Fuse Block Wiring Schematic
