Sgl Pole Ac/Dc Brkr Wht-15A - (MW)

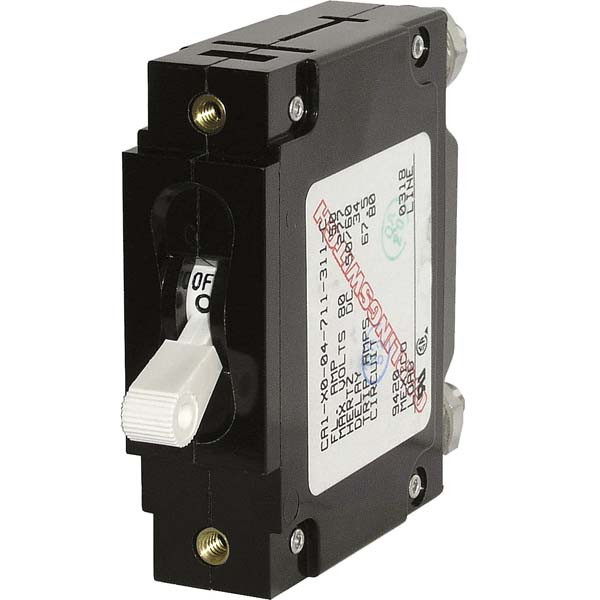

Blue Sea Systems C Series White Toggle Circuit Breaker - Single Pole

The Blue Sea C Series Circuit Breaker provides overcurrent protection for inverters, bow thrusters, and windlasses.

Features:

• Combines switching and circuit protection into a single device.
• "Trip Free" - cannot be held closed after trip
• Circuit Breaker Type: Magnetic Hydraulic - trip free
• Available in 10, 15, 20, 25, 30,50, 60, 80, 100 Amps

Specifications:

• Maximum Voltage: 240V AC  |  80V DC
• Terminal Stud: 1/4-20 Tin-Plated Brass
• Terminal Stud Torque: 35 in-lb
• Interrupt Capacity: 5000A @ 125V AC  |  5000A @ 240V AC  |  10000A @ 80V DC
• Minimum Operating Temperature: -40° C
• Maximum Operating Temperature: 85° C
• Mounting Screw: #6-32 Stainless Steel
• Mounting Screw Torque: 6 in-lb

Cutout Dimensions:

Click to Download Blue Sea C Series Toggle Circuit Breaker Instructions

Frequently Asked Questions

What is the Blue Sea Systems C Series White Toggle Circuit Breaker - Single Pole used for?

The Blue Sea Systems C Series White Toggle Circuit Breaker - Single Pole provides overcurrent protection for applications such as inverters, bow thrusters, and windlasses. It combines switching and circuit protection in a single device.

What amperage ratings are available for the Blue Sea Systems C Series Single Pole Circuit Breaker?

The Blue Sea Systems C Series Single Pole Circuit Breaker is available in 10, 15, 20, 25, 30, 50, 60, 80, and 100 amp models. Verify the required amperage rating for the intended application before installation.

What does trip-free mean on the Blue Sea Systems C Series Circuit Breaker?

The Blue Sea Systems C Series Circuit Breaker has a trip-free design, meaning it cannot be held closed after it trips. The circuit breaker type is magnetic hydraulic and trip free.

What are the voltage ratings of the Blue Sea Systems C Series Single Pole Circuit Breaker?

The Blue Sea Systems C Series Single Pole Circuit Breaker has a maximum voltage rating of 240V AC or 80V DC. Its interrupt capacity is 5000A at 125V AC, 5000A at 240V AC, and 10000A at 80V DC.

What are the terminal and mounting specifications for the Blue Sea Systems C Series Circuit Breaker?

The circuit breaker uses a 1/4-20 tin-plated brass terminal stud with a terminal stud torque specification of 35 in-lb. It mounts with a #6-32 stainless steel screw, with a mounting screw torque specification of 6 in-lb.

What operating temperatures are specified for the Blue Sea Systems C Series Single Pole Circuit Breaker?

The Blue Sea Systems C Series Single Pole Circuit Breaker has a specified minimum operating temperature of -40° C and a maximum operating temperature of 85° C.
