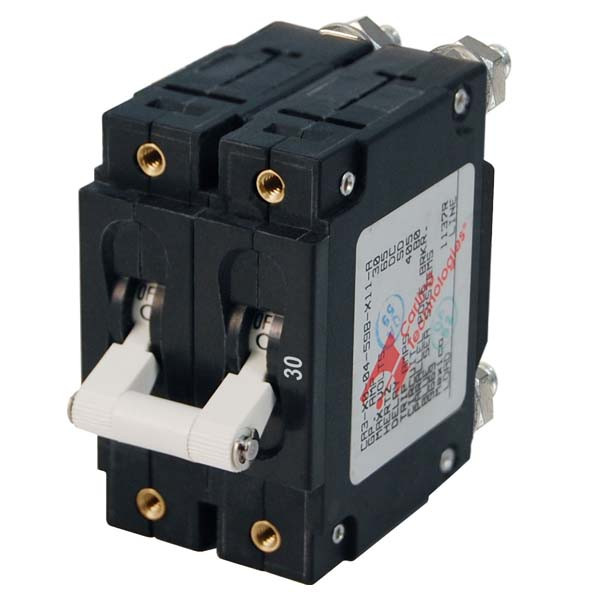

Blue Sea Systems C-Series White Toggle Circuit Breaker - Double Pole
The Blue Sea Systems C Series Circuit Breakers provide overcurrent protection for inverters, bow thrusters, and windlasses.
Features:
- Combines switching and circuit protection into a single device
- "Trip Free" - cannot be held closed after trip
- Double pole used as 120 volt AC main circuit breaker to switch hot and neutral
- Double pole circuit breakers will trip all poles if any one pole trips
- Available in 30, 50, 60, 80, & 100 Amp models
Specifications:
- Maximum Voltage: 120V AC | 240V AC | 80V DC
- Terminal Stud: 1/4-20 Tin-Plated Brass
- Terminal Stud Torque: 35 in-lb
- Interrupt Capacity: 5000A @ 240V AC
- Minimum Operating Temperature: -40° C
- Maximum Operating Temperature: 85° C
- Mounting Screw: #6-32 Stainless Steel
- Mounting Screw Torque: 6 in-lb
WARNING: Cancer and Reproductive Harm - P65Warnings.ca.gov
Product Specifications
| Brand | Blue Seas |
|---|---|
| Manufacturer Part No. | 7251-BSS |
| UPC | 632085072513 |

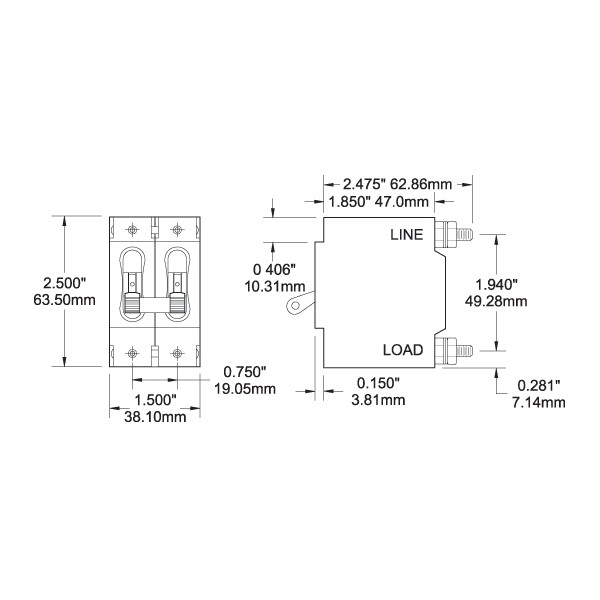

| Dimensions | 3.5" L × 4.5" W × 5" H |
| Shipping Weight | 0.7 lb |
| Shipping Box | 6x6x6" |
