Blue Sea Systems Water-Resistant BusBar 100 Amp - MW
Express
Toronto, ON
Vancouver, BC
NJ, Warehouse
FL, Warehouse
"Express" items are automated and typically shipped out the next available business day and delivered within 4 days.
In Stock
5 available
$42.79

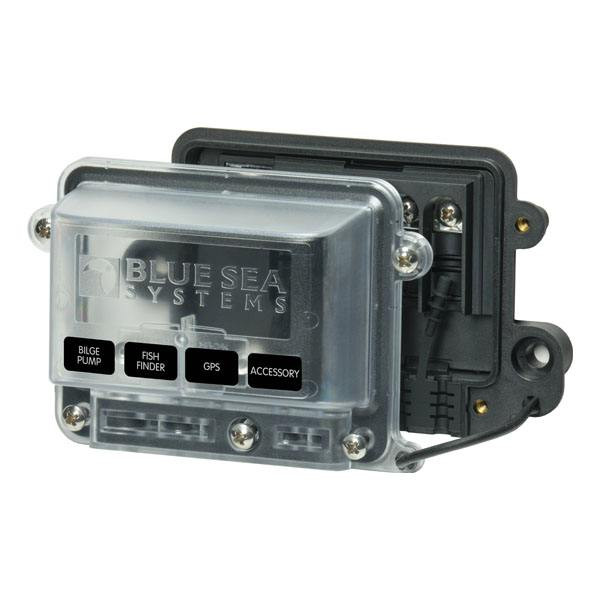

Blue Sea Systems 2356 Water-Resistant BusBar 100 Amp
The Blue Sea Systems Water-Resistant BusBar provides secure, water-resistant bussing for harsh environments. This busbar has a single side nesting design that allows for wire entry from one side to maximize space. Standard ring or fork type terminals allow for simple wiring with standard tools. The 2356 Busbar is ideal for positive distribution and for the collection of negative or AC ground circuits. The insulating cover meets ABYC/USCG insulation requirements.
This BusBar nests with other water-resistant 100A common busbars and ST-blade water-resistant fuse blocks for space saving wiring.
Features:
- Includes insulating cover that meets ABYC/USCG insulation requirements
- Accepts a wide range of wire sizes
- Includes 3 wire plugs to maintain water-resistant rating if less than 4 wires are used
- Tin-plated copper busses and fuse clips
- Includes four write-on circuit labels
Specifications:
- Maximum Voltage: 300V AC | 48V DC
- Continuous Rating: 100A AC | 100A DC
- Bus Material: Tin-Plated Copper C11000
- Mounting Holes: Accepts 1/4" (6mm) Screws
- Terminal Screws: 4 x #8-32
- Terminal Stud: 1 x #10-32
- Wire Size (Input): (1) 8 AWG to 4 AWG
- Wire Size (Load): (4) 16 AWG to 10 AWG
WARNING: Cancer and Reproductive Harm - P65Warnings.ca.gov
