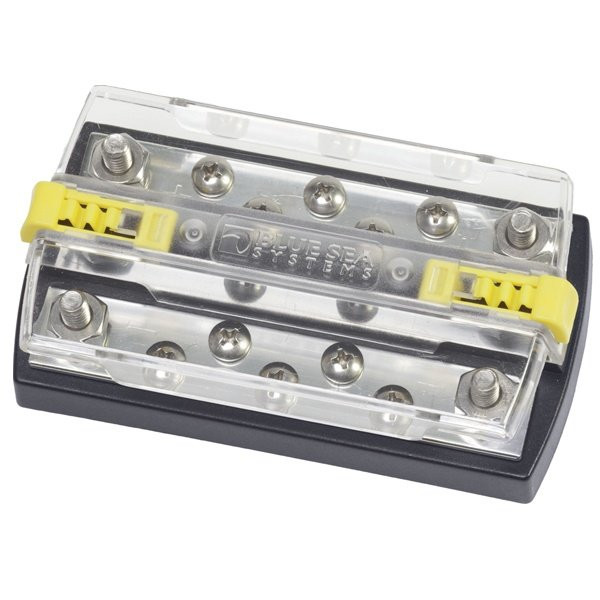

Blue Sea DualBus Plus 150Amp Bus Bar - 5 Gang
The Blue Sea DualBus Plus Bus Bar combines negative and positive buses on one block. A clear polycarbonate cover snaps on to meet Coast Guard and ABYC insulation requirements.
Maximum Voltage: 300V AC | 48V DC
Number of Screw Terminals: 5 per bus
Number of Terminal Studs: 2 per bus
Terminal Type: #10-32 Screw | 1/4" Stud
Continuous Rating: 130A AC | 150A DC
Base Material: Reinforced Polycarbonate
Bus Material: Tin-Plated Copper CDA 110 / UNS 11000
Cover Matieral: Clear Polycarbonate
Mounting Screw: #10 (M5)
Weight: 0.61 lb (0.28 kg)
