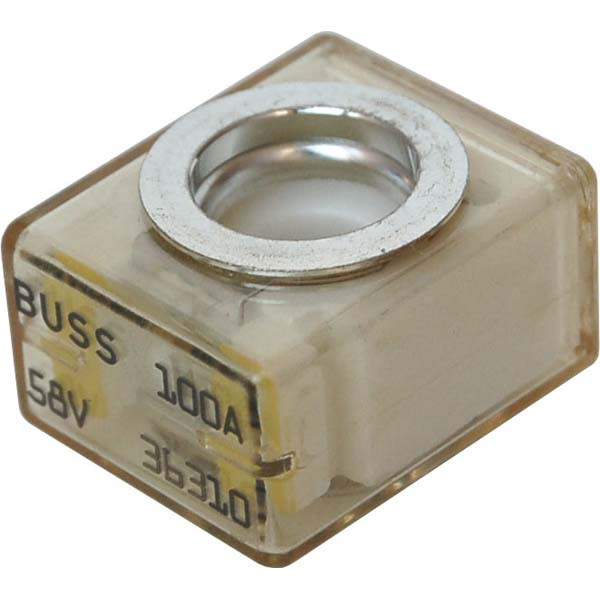

Blue Sea Systems MRBF Terminal Fuse
Requires the use of Terminal Fuse Blocks PN 5191 or PN 2151 - do not mount the fuses directly to the battery terminal.
- Interrupt rating satisfies ABYC requirements for DC Main circuit protection on large battery banks
- Ignition protected - safe for installation aboard gasoline powered boats
- Clear window - visual indication of blown condition
- Color coded for each amperage
Specifications:
- Maximum Voltage: 58V DC
- Interrupt Capacity:
- 10000A @ 14V DC
- 5000A @ 32V DC
- 2000A @ 58V DC
Available in: 30 Amp, 50 Amp, 100 Amp, 150 Amp, 200 Amp
WARNING: Cancer and Reproductive Harm - P65Warnings.ca.gov
Product Specifications
| Brand | Blue Seas |
|---|---|
| Manufacturer Part No. | 5183-BSS |
| UPC | 632085051839 |

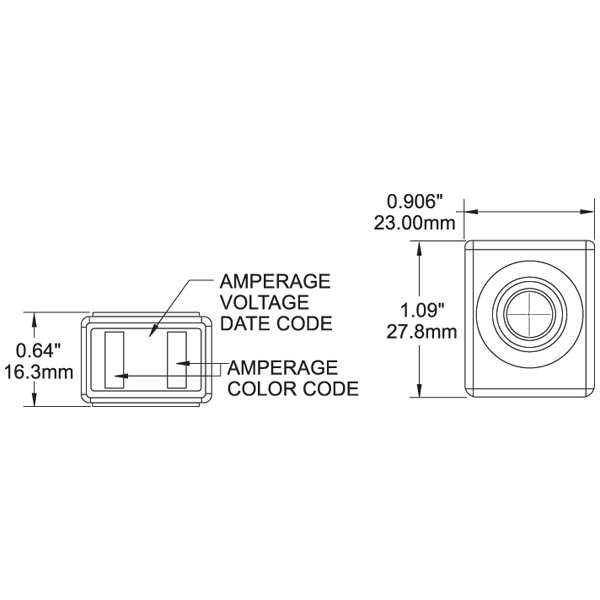

| Dimensions | 1.09" L × 0.91" W × 0.64" H |
| Shipping Weight | 0.06 lb |
| Shipping Box | 6x6x6" |
